Hi!

After our experimentations with all the native admision controllers, we’re back again on some Gateway API stuff 😎.

We are already familiar with basics such as gatewayclasses, gateways, httproutes, referencegrants. And we saw previously how to expose apps specifically with httproutes.

But in this article, we’ll dive in listenersets and see what use case can be leveraged with this spceific CRD.

Our agenda:

  1. Review of the workflow to expose apps with the Gateway API
  2. What need the listenersets answer
  3. Experimenting with listenersets

1. Review of the workflow to expose apps with the Gateway API

Before looking into the listenersets, we’ll review the connection workflow to an application with the Gateway API.

It can be summarized with this schema.

!illustration1.

As illustrated, we have on the upstream part the gateway, which is the exposed part, and the access to the backend service is achieved through the httproute.

On the gateway, we define at least 1 listener, and this is a mandatory field, in which the port and protocol is defined.


  listeners:
  - protocol: HTTPS
    port: 443
    name: shared-gw-tls-envoy-nodeport
    allowedRoutes:
      namespaces:
        from: Selector
        selector:
          matchExpressions:
          - { key: kubernetes.io/metadata.name, operator: In, values: [gundam,demoapp] }

We can also notice the filter on the allowed routes with the allowedRoutes.

Because we specified HTTPS in the protocol section, the gateway expects a TLS section.


    tls:
     certificateRefs:
     - kind: Secret
       group: ""
       name: gundamapp-tls
       namespace: certificates

Once the gateway is running, we can see the underlying service deployed by the Gateway API provider, in this case Envoy Gateway.


➜  ~ k get gateway -n shared-gw shared-gw-tls-envoy-nodeport
NAME                           CLASS            ADDRESS         PROGRAMMED   AGE
shared-gw-tls-envoy-nodeport   envoy-nodeport   192.168.56.17   True         15h
➜  ~ k get service -n envoy-gateway-system envoy-shared-gw-shared-gw-tls-envoy-nodeport-cee0d807
NAME                                                    TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)         AGE
envoy-shared-gw-shared-gw-tls-envoy-nodeport-cee0d807   NodePort   100.65.138.164   <none>        443:32086/TCP   15h

We could also note the fact that our gateway uses a NodePort service, which we can configure through the GatewayClass.


apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: nodeport-proxy
  namespace: envoy-gateway-system
spec:
  provider:
    type: Kubernetes
    kubernetes:
      envoyService:
        type: NodePort
        annotations:
          "service.beta.kubernetes.io/azure-load-balancer-internal": "true"
---
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: envoy-nodeport
spec:
  controllerName: gateway.envoyproxy.io/gatewayclass-controller
  parametersRef:
    group: gateway.envoyproxy.io
    kind: EnvoyProxy
    name: nodeport-proxy
    namespace: envoy-gateway-system

Next we have the httproute which point for the upstream to the gateway, and configure the backend kubernetes services.


apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: gundam-httproute-with-shared-gw
  namespace: gundam
spec:
  parentRefs:
  - name: shared-gw-tls-envoy-nodeport
    namespace: shared-gw
  hostnames:
  - "gateway.app.teknews.cloud"
  rules:
  - backendRefs:
    - name: gundamappsvc
      port: 8080
      kind: Service

We’ll note that a hostname is referenced here and that should gives us access to the backend.

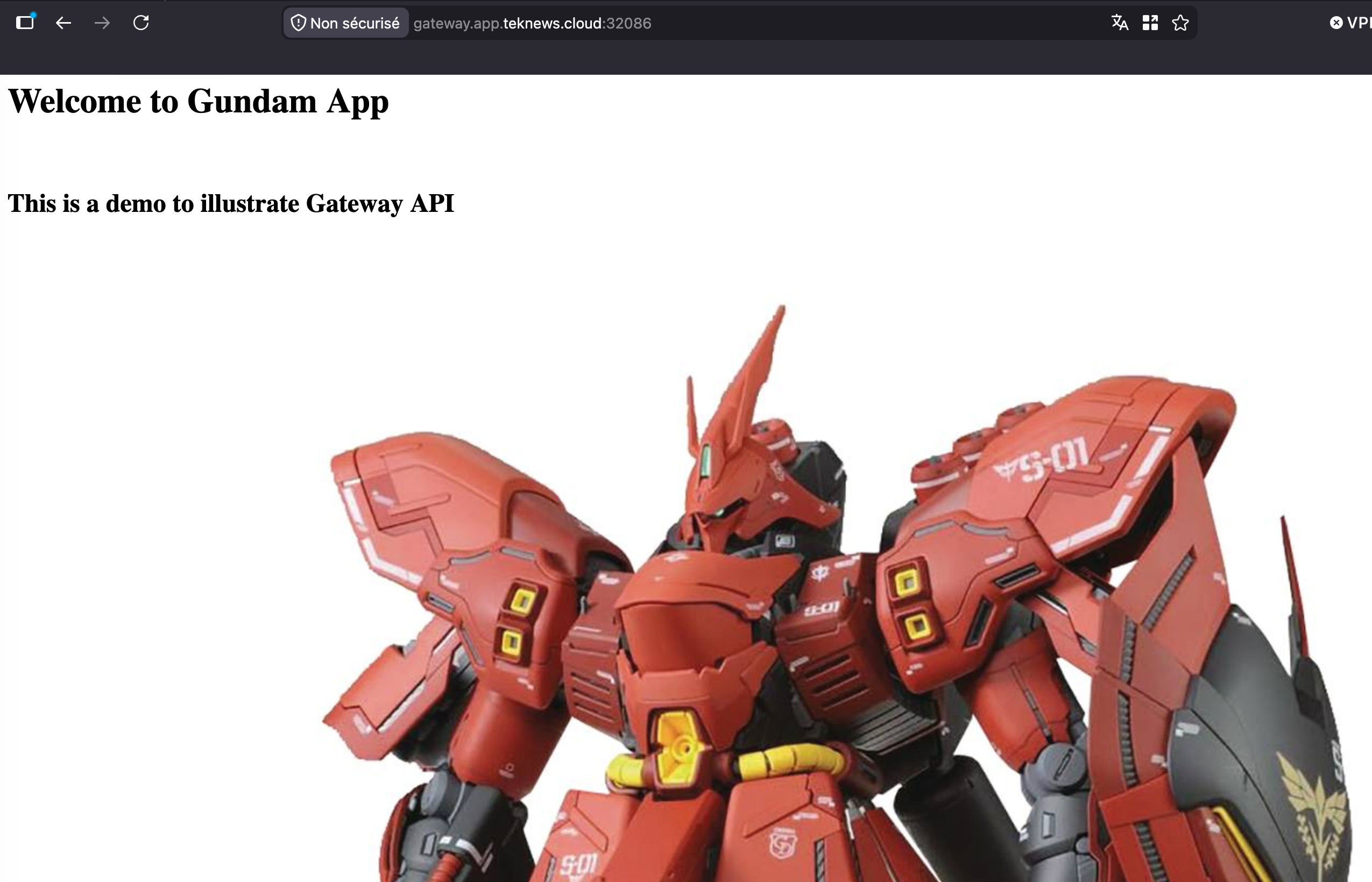

illustration2

Ok fine, we already knew it worked so what’s the deal with listenersets?

2. What need the listenersets answer

2.1. Understanding the changes brought by the Gateway API

To understand the need, we have to go back to the role oriented model of the Gateway API.

illustration3

And the way most of the kubernetes users are used to manipulate the apps exposition, which was the ingress

illustration4

One important difference between the Gateway API and the Ingress Controller is that we can have as many gateways as we want while we usually had only one controller.

At this point, it may not seem important, but if we refer to the role model, we can see that the gateway is more on the cluster operator scope, while the downstream objects such as the httproute are more app operator scope.

Which means that managing the certificate is on the gateway side, while managing the hostname is on the httproute side.

Now if we check the documentation on the ingress, we can find a manifest as follow, with TLS management.


apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: tls-example-ingress
spec:
  tls:
  - hosts:
      - https-example.foo.com
    secretName: testsecret-tls
  rules:
  - host: https-example.foo.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: service1
            port:
              number: 80

While the idea of the role oriented model remains a good idea, we just moved the responsibility to manage the certificate to the cluster operators scope (😱 is the face that those people will make when you tell them).

Regarding TLS management, we could effectively remove the TLS management from the apps developer, but it would means managing the different certificates and listeners on the cluster ops.

Or we could let it in the apps developer scope and have a distributed model for the Gateway, meaning one app == one gateway. Definitely not following the role oriented model as planned 😵.

On the first scenario, if we thinbk about it, we could have an approach with a wild card certificate. So every hosts for a domain name could be covered. But, apart from the fact that the wild card may not be acceptable from a security point of view, a limit remains if we have different domain for our hosts. The other approach could be to managed different listeners, with differents hostnames, and certificates. But we are back to the change implied by the role model, and the necessity to have the cluster ops manage something they were not doing before.

And that’s where we introduce the listenerset.

2.2. ListenerSet concepts

The proposal of the listenerset is to provide a means to keep the role oriented approach, while not puting overhead on the cluster ops.

The idea is to add another object between the downstream (in our case, mainly the httproute) and the upstream, a.k.a the gateway.

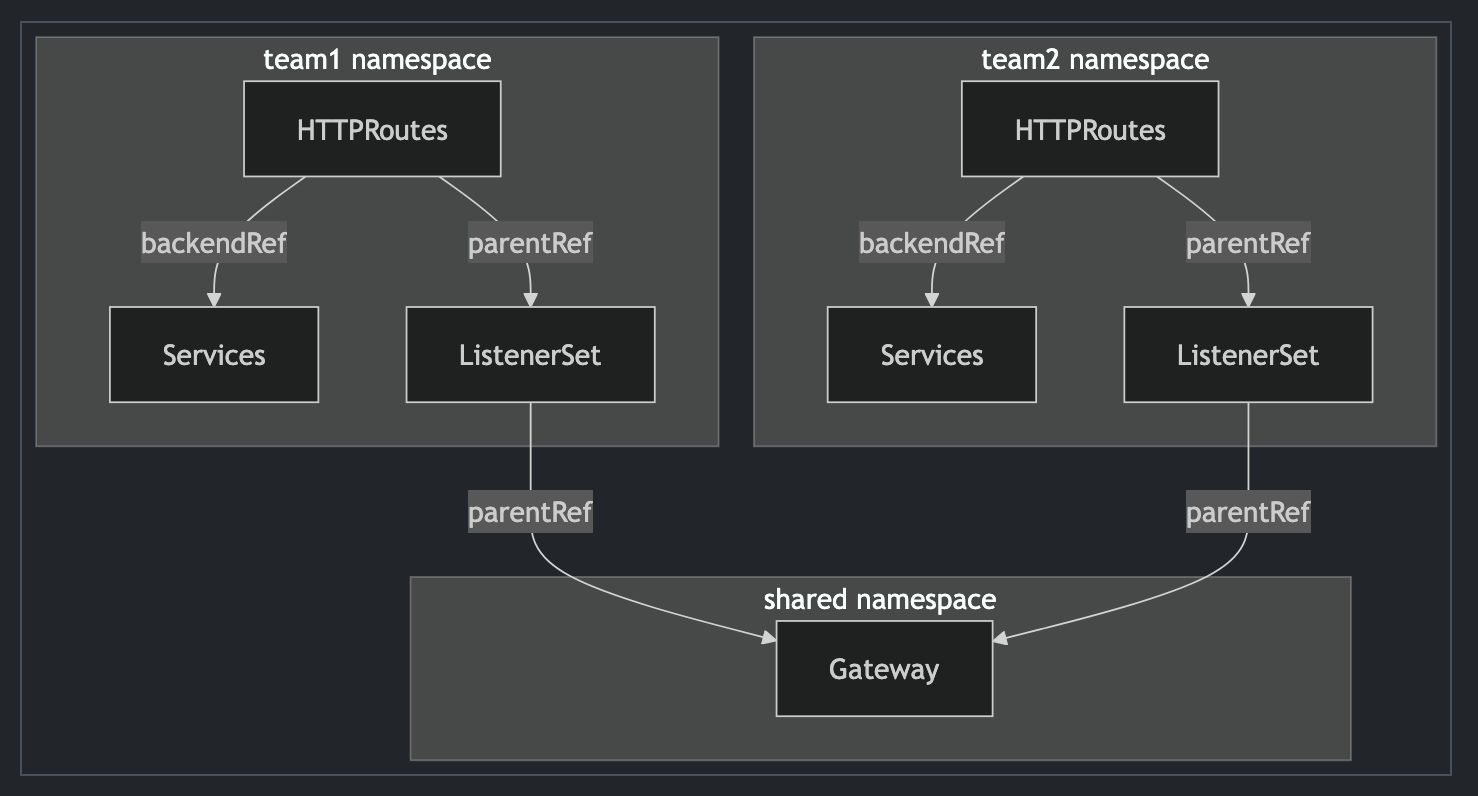

A nice schema is presented on the gateway api documentation.

illustration5

Through this aproach, the cluster team is able to keep ownership of the cluster wide part, and the gateway is included.

Refering to the listenetset documentation, we can find its main configuration in its spec section:

  • parentsRef where is defined which gateway the listener depends on.
  • listeners, as on the gateway, which allows to define listener configuration such as hostnames, ports, protocols but also TLS configuration.

An interesting information specified on this documentation is the augmented number of listeners that can be used through the listenersets. Indeed, with only the listeners section of the gateway there is a limitation of 64 listeners.

Another worthy of interest information is the mention of being able to configure hostnames on the listenersets. Something that can be configured on the HTTProute.


apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: gundam-httproute-with-shared-gw
  namespace: gundam
spec:
  parentRefs:
  - name: shared-gw-tls-envoy-nodeport
    namespace: shared-gw
  hostnames:
  - "gateway.app.teknews.cloud"
  rules:
  - backendRefs:
    - name: gundamappsvc
      port: 8080
      kind: Service

However, we never configured any hostname on the gateway. Checking the API documentation, we can find that the field does exist, and it’s mentionned that if it is not specified, then all hostnames are matched.

That’s why it can work the way we did it. The gateway match all hostnames, and we have a specific hostname on the HTTPRoute.

However, we’ll keep that in mind for our experiment part.

As a reference, below is a table listing the different fields of the spec section for the listenerset.

Fields Description
parentRef ParentRef references the Gateway that the listeners are attached to.
listeners Listeners associated with this ListenerSet. Listeners define logical endpoints that are bound on this referenced parent Gateway’s addresses. Max number of items is 64, min is 1

And more specifically, the fields of the listeners section if the listenerset spec.

Fields Description
name Name is the name of the Listener. This name MUST be unique within a ListenerSet. Max length is 253.
hostname Hostname specifies the virtual hostname to match for protocol types that define this concept. When unspecified, all hostnames are matched. Maxlength is 253
port The port number. Multiple listeners can use the same port.
protocol Network protocol
tls Configuration for the listener set with protocol HTTPS or TLS ``
allowedRoutes Define the route that can be attached to the listenerset, as for the gateway. Filtering capabilities available

Let’s stop a bit here.

Attentive readers may get the impression that listenerSets were not initially present in the Gateway API implementations.

And that’s right. This object was made available in the standard channel only starting from v1.5.0 And that means we again have to be very careful with the compatibility matrix of the Gateway API implementation that we use.

As a matter of fact, not all implementation are listenerSet-ready.

Before trying some listenerSet configurations, we need to verufy the version of the Gateway API CRDs.


➜  ~ k get crd gatewayclasses.gateway.networking.k8s.io -o yaml |grep -i bundle-version
    gateway.networking.k8s.io/bundle-version: v1.5.1

Then we can check some of the GatewayClasses that we have already and see what is displayed.


➜  ~ k get gatewayclasses.gateway.networking.k8s.io nginx -o json |jq .status.supportedFeatures |grep -i listenerset -A1 -B1


  {
    "name": "ListenerSet"
  },

As the result of the command shows, some implementations include in the status.supportedFeatures the list of supported features. The currently installed version of nginx seems to be listenerSet compatible.

However, cilium does not.


➜  ~ k get gatewayclasses.gateway.networking.k8s.io cilium -o json |jq .status.supportedFeatures

[
  {
    "name": "BackendTLSPolicy"
  },
  {
    "name": "GRPCRoute"
  },
  {
    "name": "GRPCRouteNamedRouteRule"
  },
  {
    "name": "Gateway"
  },
  {
    "name": "GatewayAddressEmpty"
  },
  {
    "name": "GatewayFrontendClientCertificateValidationInsecureFallback"
  },
  {
    "name": "GatewayHTTPListenerIsolation"
  },
  {
    "name": "GatewayInfrastructurePropagation"
  },
  {
    "name": "GatewayPort8080"
  },
  {
    "name": "GatewayStaticAddresses"
  },
  {
    "name": "HTTPRoute"
  },
  {
    "name": "HTTPRouteBackendProtocolH2C"
  },
  {
    "name": "HTTPRouteBackendProtocolWebSocket"
  },
  {
    "name": "HTTPRouteBackendRequestHeaderModification"
  },
  {
    "name": "HTTPRouteBackendTimeout"
  },
  {
    "name": "HTTPRouteCORS"
  },
  {
    "name": "HTTPRouteDestinationPortMatching"
  },
  {
    "name": "HTTPRouteHostRewrite"
  },
  {
    "name": "HTTPRouteMethodMatching"
  },
  {
    "name": "HTTPRouteNamedRouteRule"
  },
  {
    "name": "HTTPRoutePathRedirect"
  },
  {
    "name": "HTTPRoutePathRewrite"
  },
  {
    "name": "HTTPRoutePortRedirect"
  },
  {
    "name": "HTTPRouteQueryParamMatching"
  },
  {
    "name": "HTTPRouteRequestMirror"
  },
  {
    "name": "HTTPRouteRequestMultipleMirrors"
  },
  {
    "name": "HTTPRouteRequestPercentageMirror"
  },
  {
    "name": "HTTPRouteRequestTimeout"
  },
  {
    "name": "HTTPRouteResponseHeaderModification"
  },
  {
    "name": "HTTPRouteSchemeRedirect"
  },
  {
    "name": "Mesh"
  },
  {
    "name": "MeshClusterIPMatching"
  },
  {
    "name": "MeshHTTPRouteBackendRequestHeaderModification"
  },
  {
    "name": "MeshHTTPRouteNamedRouteRule"
  },
  {
    "name": "MeshHTTPRouteQueryParamMatching"
  },
  {
    "name": "MeshHTTPRouteRedirectPath"
  },
  {
    "name": "MeshHTTPRouteRedirectPort"
  },
  {
    "name": "MeshHTTPRouteRewritePath"
  },
  {
    "name": "MeshHTTPRouteSchemeRedirect"
  },
  {
    "name": "ReferenceGrant"
  },
  {
    "name": "TLSRoute"
  },
  {
    "name": "TLSRouteModeMixed"
  }
]

If the GatewayClass does not show anything in the status section, we have to fall back to the documentation to verify the compatibility matrix.

In the next section, we’ll rely on Envoy Gateway v1.8.2 for which we did check the compatibility of ListenerSets 😏

3. Experimenting with listenersets

Taking from our sample in part 1, we have the following gateway.


apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: shared-gw-tls-envoy-nodeport
  namespace: shared-gw
spec:
  gatewayClassName: envoy-nodeport
  listeners:
  - protocol: HTTPS
    port: 443
    name: shared-gw-tls-envoy-nodeport
    allowedRoutes:
      namespaces:
        from: Selector
        selector:
          matchExpressions:
          - { key: kubernetes.io/metadata.name, operator: In, values: [gundam,demoapp] }
    tls:
     certificateRefs:
     - kind: Secret
       group: ""
       name: gundamapp-tls
       namespace: certificates

Checking its GatewayClass, we can see no info displayed about the compatibility as just discussed.


status:
  conditions:
  - lastTransitionTime: "2026-07-08T06:47:56Z"
    message: Valid GatewayClass
    observedGeneration: 1
    reason: Accepted
    status: "True"
    type: Accepted

At this point, we have a gateway that is configured to match all hostnames. It’s also configured to accept httproutes from namespaces gundam and demoapp. The hostname is referenced only on the httproute, as detailed in section 1.

We still lack something for now, but let’s write a configuration for a listenerset.

Our main goal is to give more capabilities to the developer team, such as a mean to manage the hostname and certificate.

Let’s take the hypothesis that the dev team will use the hostname listenerset.app.teknews.cloud. We’ll place the listenerset, and another HTTPRoute in the app namespace, in this case gundam


apiVersion: gateway.networking.k8s.io/v1
kind: ListenerSet
metadata:
  name: gundam-listenerset-envoy
  namespace: gundam
spec:
  parentRef:
    namespace: shared-gw
    name: shared-gw-tls-envoy-nodeport
    kind: Gateway
    group: gateway.networking.k8s.io
  listeners:
  - name: first
    hostname: listenerset.app.teknews.cloud
    protocol: HTTPS
    port: 443
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        group: ""
        name: gundamapp-listenerset-tls

Notice the TLS section in which we specify the secret used to reference the certificate. With this we are reaching our aim to grant the same level of independancy we had with the ingress object.

Our HTTPRoute is looking like this.


---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: gundam-httproute-with-listenerset-envoy
  namespace: gundam
spec:
  parentRefs:
  - name: gundam-listenerset-envoy
    kind: ListenerSet
    group: gateway.networking.k8s.io
  hostnames:
  - listenerset.app.teknews.cloud
  rules:
  - backendRefs:
    - name: titansvc
      port: 8080
      kind: Service
  - backendRefs:
    - name: evasvc
      port: 8090
      kind: Service
    matches:
    - path:
        type: PathPrefix
        value: /eva
    filters:
    - type: URLRewrite
      urlRewrite:
        path:
          type: ReplacePrefixMatch
          replacePrefixMatch: /

It’s referencing other kubernetes services as backend, but this is not what we are interested in.

Here, we can see that we have a match between the hostname in the listenerset, and the HTTPRoute.

If we try to create our object like this, it won’t work.

Firstly because, as mentionned before, our gateway matches all hostnames, so we currently have a conflict between the listener define in our listenerset, which should allow listenerset.app.teknews.cloud, and our gateway, which does not specify any hostname, and thus allows all hostnames including gateway.app.tekenws.cloud referenced in our HTTPRoute from earlier, abut also listenerset.app.teknews.cloud which should only match for the listenerset.

Secondly, because, similarly to the HTTPRoutes filters, we need to specifically allow listenerset on the gateway.

So our gateway becomes somthing like this.


apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: shared-gw-tls-envoy-nodeport
  namespace: shared-gw
spec:
  gatewayClassName: envoy-nodeport
  allowedListeners:
    namespaces:
      from: Selector
      selector:
        matchExpressions:
        - { key: kubernetes.io/metadata.name, operator: In, values: [shared-gw,gundam,demoapp] }
  listeners:
  - protocol: HTTPS
    port: 443
    name: shared-gw-tls-envoy-nodeport
    hostname: gateway.app.teknews.cloud
    allowedRoutes:
      namespaces:
        from: Selector
        selector:
          matchExpressions:
          - { key: kubernetes.io/metadata.name, operator: In, values: [gundam,demoapp] }
    tls:
     certificateRefs:
     - kind: Secret
       group: ""
       name: gundamapp-tls
       namespace: certificates

Lst but not least, the HTTPRoute must reference in its parentsRef section the listenerset, instead of the gateway, as before.


spec:
  parentRefs:
  - name: gundam-listenerset-envoy
    kind: ListenerSet
    group: gateway.networking.k8s.io

With the apps defined in the HTTPRoute backend deployed, we have the following result for the listener define on the gateway level.


➜  ~ curl -k -i -X GET https://gateway.app.teknews.cloud:32086/barbatos
HTTP/2 200
server: nginx/1.31.2
date: Sat, 11 Jul 2026 21:10:34 GMT
content-type: text/html
content-length: 288
last-modified: Wed, 08 Jul 2026 07:04:11 GMT
etag: "6a4df66b-120"
accept-ranges: bytes

<html>
<h1>Welcome to Gundam App 2</h1>
</br>
<h2>This is a demo to illustrate Gateway API </h2>
<img src="https://imgs.search.brave.com/AfLpq5XX4tK6TtxoWLDbd_665qDaxYgPAJKBCxVl5aE/rs:fit:860:0:0:0/g:ce/aHR0cHM6Ly9tLm1l/ZGlhLWFtYXpvbi5j/b20vaW1hZ2VzL0kv/NjFyYkhlLTdCbEwu/anBn" />
</html>

And on the listenerset level.


➜  ~ curl -k -i -X GET https://listenerset.app.teknews.cloud:32086/
HTTP/2 200
server: nginx/1.31.2
date: Sat, 11 Jul 2026 21:10:50 GMT
content-type: text/html
content-length: 221
last-modified: Sat, 11 Jul 2026 21:09:01 GMT
etag: "6a52b0ed-dd"
accept-ranges: bytes

<html>
<h1>Welcome to Gundam App</h1>
</br>
<h2>This is a demo to illustrate Gateway API and the use of listenersets</h2>
<img src="https://i.pinimg.com/originals/5d/35/52/5d3552354ab9f1faed486a70c90d4aea.jpg" />
</html>

We know that for each envoy gateway, we have a corresponding deployment in the namespace.


➜  ~ k get deployments.apps -n envoy-gateway-system
NAME                                                    READY   UP-TO-DATE   AVAILABLE   AGE
envoy-gateway                                           1/1     1            1           24d
envoy-gundam-gundam-gw-8863faac                         1/1     1            1           3d11h
envoy-shared-gw-shared-gw-tls-envoy-eff02edc            1/1     1            1           3d4h
envoy-shared-gw-shared-gw-tls-envoy-nodeport-cee0d807   1/1     1            1           3d4h

Checking the logs of the one used by our gateway, we can see the references to our curl command from earlier.


{
  ":authority": "gateway.app.teknews.cloud:32086",
  "bytes_received": 0,
  "bytes_sent": 288,
  "connection_termination_details": null,
  "downstream_local_address": "100.64.0.249:10443",
  "downstream_remote_address": "192.168.56.1:51212",
  "duration": 1,
  "method": "GET",
  "protocol": "HTTP/2",
  "requested_server_name": "gateway.app.teknews.cloud",
  "response_code": 200,
  "response_code_details": "via_upstream",
  "response_flags": "-",
  "route_name": "httproute/gundam/gundam-httproute-with-shared-gw/rule/1/match/0/gateway_app_teknews_cloud",
  "start_time": "2026-07-11T21:14:16.614Z",
  "upstream_cluster": "httproute/gundam/gundam-httproute-with-shared-gw/rule/1",
  "upstream_host": "100.64.0.45:80",
  "upstream_local_address": "100.64.0.249:53442",
  "upstream_transport_failure_reason": null,
  "user-agent": "curl/8.7.1",
  "x-envoy-origin-path": "/",
  "x-envoy-upstream-service-time": null,
  "x-forwarded-for": "192.168.56.1",
  "x-request-id": "94e559ff-9450-4965-ac37-49d36f1bb18f"
}
{
  ":authority": "gateway.app.teknews.cloud:32086",
  "bytes_received": 0,
  "bytes_sent": 288,
  "connection_termination_details": null,
  "downstream_local_address": "100.64.0.249:10443",
  "downstream_remote_address": "192.168.56.1:51215",
  "duration": 0,
  "method": "GET",
  "protocol": "HTTP/2",
  "requested_server_name": "gateway.app.teknews.cloud",
  "response_code": 200,
  "response_code_details": "via_upstream",
  "response_flags": "-",
  "route_name": "httproute/gundam/gundam-httproute-with-shared-gw/rule/1/match/0/gateway_app_teknews_cloud",
  "start_time": "2026-07-11T21:14:18.373Z",
  "upstream_cluster": "httproute/gundam/gundam-httproute-with-shared-gw/rule/1",
  "upstream_host": "100.64.0.45:80",
  "upstream_local_address": "100.64.0.249:53442",
  "upstream_transport_failure_reason": null,
  "user-agent": "curl/8.7.1",
  "x-envoy-origin-path": "/",
  "x-envoy-upstream-service-time": null,
  "x-forwarded-for": "192.168.56.1",
  "x-request-id": "8934ec06-9d1d-4da6-9f88-da5d5b976c0c"
}

Which shows we do have waht we want. So let’s wrap for today.

4. Summary

The idea with this article was to have a look at the fix for something that was missing in the Gateway API.

With listenersets, app developers can now manage by themselves the listeners and certificate for their apps.

On the other hand, the gateway remains in the cluster team scope.

The change to take into account here are

  • The all hostnames match that should go on the gateway listeners, replace at least by something similar to the Ingress default backend.
  • Each listenerset should have its own hostname, and be allowed to on the gateway.
  • HTTPRoute (and other downstream part) should have a parentRefs defining the listenerset instead of the gateway. Remember the schema in part 2.

There are other things to look at on listenersets, but for some basics, it’s enough, and we now have a mean to workaround the previously lost autonomy of dev teams used to manage their certificate.

See you next time ^^.
