Adding some visualization to Falco with Falco Sidekick
Hi!
following our serie on Falco, this time, we’ll have a look at how we can get a better visualization of Falco outputs.
Up until now, we’ve checked how Falco works, and how we can install, and customize Falco on either self-managed cluster, or Cloud-managed kubernetes. However, we’ve only gone to the point where we know how to check output in text mode.
What if we want to better Falco output visibility?
That’s the topic of today’s post with Falco sidekick.
Our agenda:
- About Falco Sidekick
- Configuring on AKS
- Configuring on self-managed cluster
- Falcosidekick connectivity
Ok, let’s go!
1. About Falco Sidekick
We’ve seen that Falco is a powerful engine of Security alerting that help to better Kubernetes security. However, It’s not very user friendly and it requires some sysadmin type action.

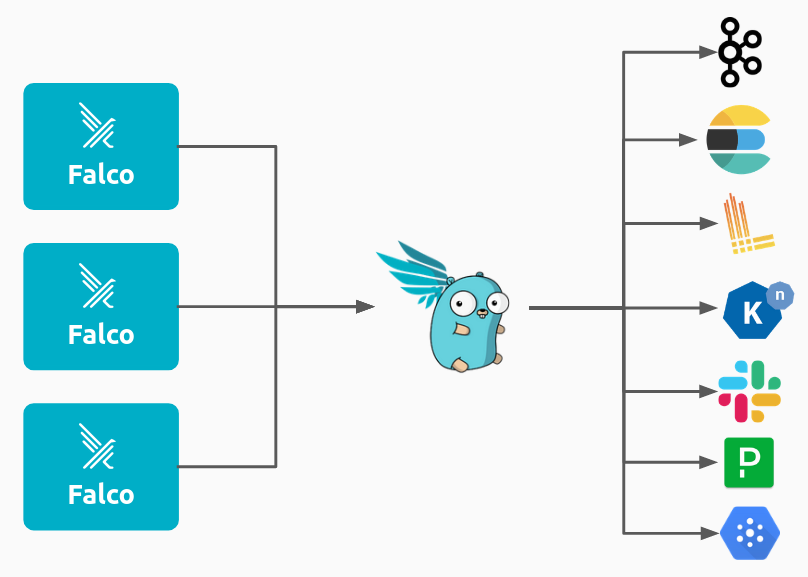

To solve this lack, Falco Sidekick has been developped. Falco Sidekick provides an endpoint to forward Falco outputs. It can be used as a centralized endpoint for multiple Falco instances. And it can also be used to forward event to different systems.
The first system that can be leverage for visualization is Falcosidekick and its UI, which provides a basic dashboard for Falco.

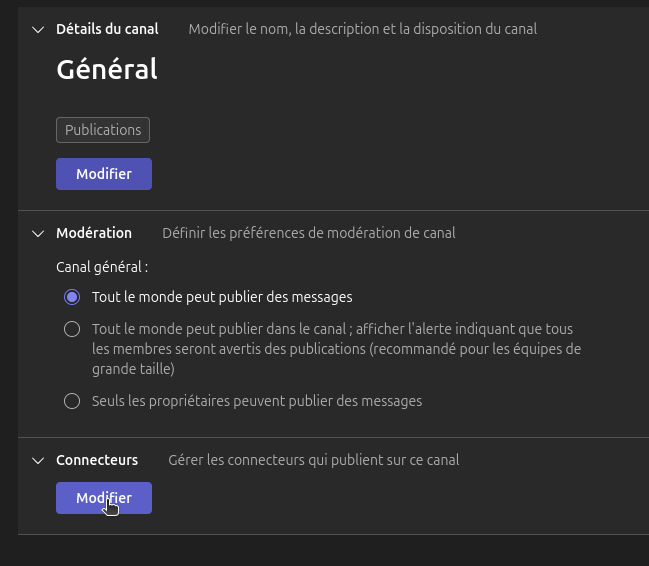

There is a quite long list of messenging solution such as Microsoft Teams, that we’ll try out later in this article, but also metrics solutions, such as Open Telemetry, or Prometheus.
.
Ok let’s dive in!
2. Configuring on AKS
We’ll start this time by a configuration on AKS.
That’s because adding Falco sidekick can be done on the Helm chart installation.
Remember that we install Falco with the following command last time.
df@df-2404lts:~$ helm upgrade falco --set falcosidekick.enabled=true falcosecurity/falco --namespace falco --create-namespace --install
Release "falco" does not exist. Installing it now.
NAME: falco
LAST DEPLOYED: Mon Nov 24 11:53:30 2025
NAMESPACE: falco
STATUS: deployed
REVISION: 1
NOTES:
Falco agents are spinning up on each node in your cluster. After a few
seconds, they are going to start monitoring your containers looking for
security issues.
Notice that we have specified the --set falcosidekick.enabled=true.
If we check, we do have a service called falco-falcosidekick in our Falco namespace. We can port-forward the service to our local host
df@df-2404lts:~/Documents/dfrappart.github.io$ k get service -n falco falco-falcosidekick
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
falco-falcosidekick ClusterIP 100.65.237.201 <none> 2801/TCP,2810/TCP 7h20m
df@df-2404lts:~/Documents/dfrappart.github.io$ k port-forward -n falco services/falco-falcosidekick 2801:2801
Forwarding from 127.0.0.1:2801 -> 2801
Forwarding from [::1]:2801 -> 2801
And see that there is an available endpoint through a curl command.
df@df-2404lts:~$ curl -i -X GET localhost:2801/healthz
HTTP/1.1 200 OK
Content-Type: application/json
Date: Mon, 24 Nov 2025 18:27:16 GMT
Content-Length: 16
{"status": "ok"}
Ok, an answer through curl, but still not very user friendly right?
Checking the Falco helm chart doc, we find that falcosidekick.webui.enabled=true is another usefull parameter which can be used to enabled a web ui.

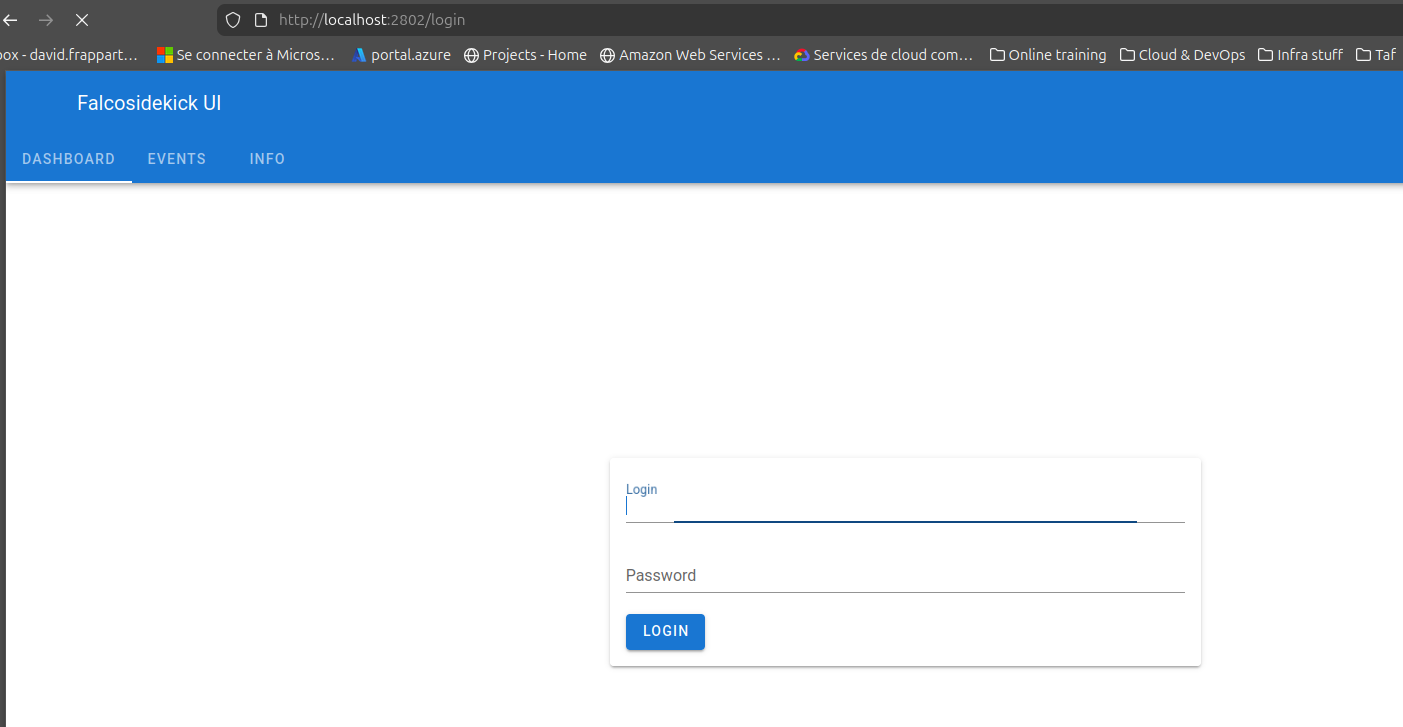

Updating our configuration, we get an additional service and we can access the web ui.
df@df-2404lts:~$ helm upgrade falco --set falcosidekick.enabled=true falcosecurity/falco --set falcosidekick.webui.enabled=true --namespace falco --create-namespace --install -f ./rules.yaml
df@df-2404lts:~$ k get service -n falco
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
falco-falcosidekick ClusterIP 100.65.237.201 <none> 2801/TCP,2810/TCP 8h
falco-falcosidekick-ui ClusterIP 100.65.187.226 <none> 2802/TCP 4h30m
falco-falcosidekick-ui-redis ClusterIP 100.65.108.231 <none> 6379/TCP 4h30m

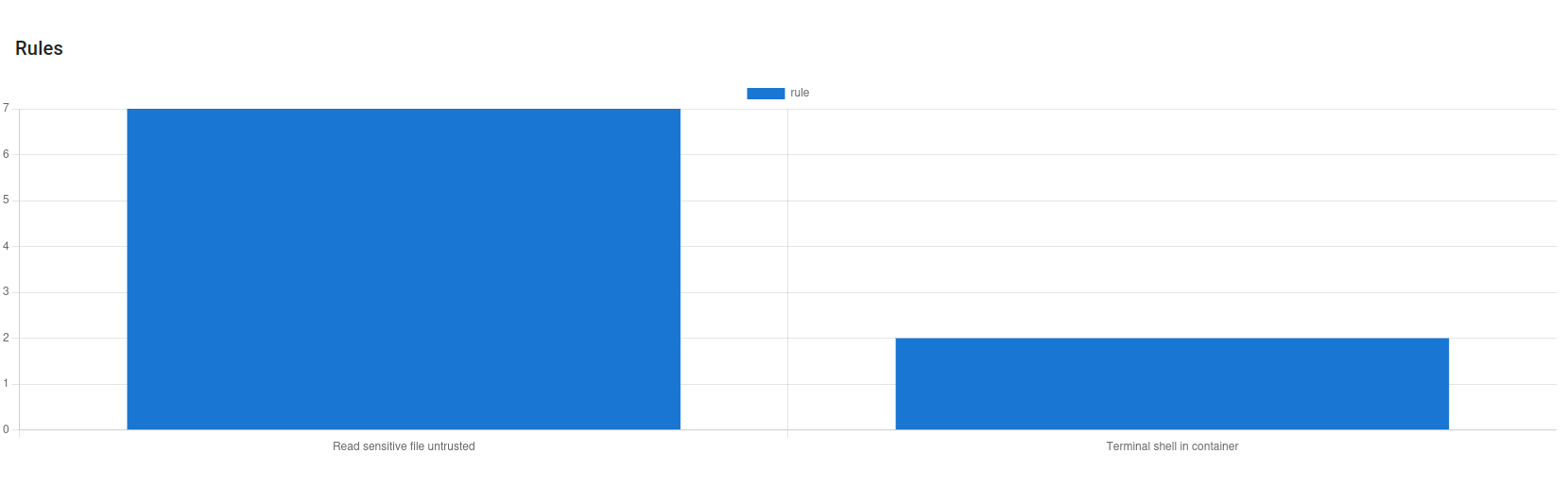

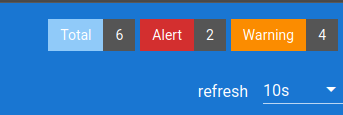

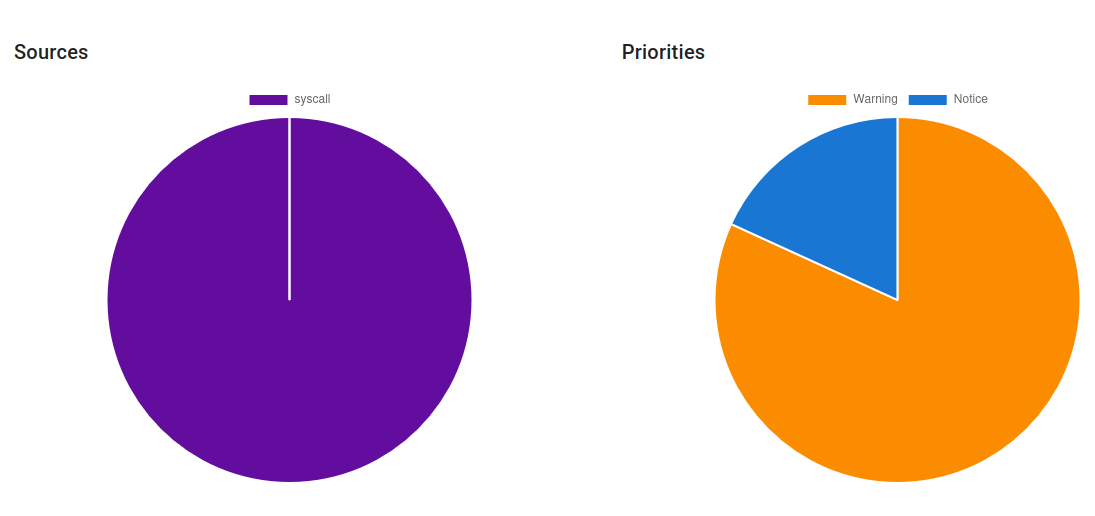

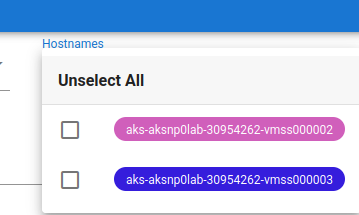

After trigerring some rules, we can see some stuff on the web ui.
It is not the best UI you’ll ever get but it is an improvement from the text output only we had until now.
Now that we’ve seen the simple installation, we’ll switch to the self-managed kubernetes and have a look at the falco.yaml details.
3. Configuring on a self-managed cluster with falco.yaml
We just saw that Falco Sidekick can be installed, embeded in the Falco Chart. This time, we cannot use this method because we have a kubeadm cluster with Falco installed as a service.
vagrant@k8scilium1:~$ systemctl status falco
● falco-modern-bpf.service - Falco: Container Native Runtime Security with modern ebpf
Loaded: loaded (/usr/lib/systemd/system/falco-modern-bpf.service; enabled; preset: enabled)
Active: active (running) since Wed 2025-11-26 06:05:10 UTC; 18min ago
Docs: https://falco.org/docs/
Main PID: 716 (falco)
Tasks: 14 (limit: 3472)
Memory: 94.9M (peak: 104.8M)
CPU: 17.053s
CGroup: /system.slice/falco-modern-bpf.service
└─716 /usr/bin/falco -o engine.kind=modern_ebpf
Nov 26 06:06:30 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:30.848867920: Warning 🚀 Container spawned! container=testpod2 image=docker.io/library/nginx:latest user=<>
Nov 26 06:06:32 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:32.505585744: Warning 🚀 Container spawned! container=morefalco image=docker.io/library/nginx:latest user=>
Nov 26 06:06:34 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:34.697346479: Warning 🚀 Container spawned! container=nginx image=docker.io/library/nginx:latest user=<NA>>
Nov 26 06:06:36 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:36.943953359: Warning 🚀 Container spawned! container=backend2 image=docker.io/library/nginx:latest user=<>
Nov 26 06:06:38 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:38.793102002: Warning 🚀 Container spawned! container=backend image=docker.io/library/nginx:latest user=<N>
Nov 26 06:06:40 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:40.780689576: Warning 🚀 Container spawned! container=newpod image=docker.io/library/nginx:latest user=<NA>
Nov 26 06:06:42 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:42.663425117: Warning 🚀 Container spawned! container=testpod image=docker.io/library/nginx:latest user=<N>
Nov 26 06:06:44 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:44.811838058: Warning 🚀 Container spawned! container=newhellofalco image=docker.io/library/nginx:latest u>
Nov 26 06:06:48 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:06:48.108455271: Warning 🚀 Container spawned! container=testpod2 image=docker.io/library/nginx:latest user=<>
Nov 26 06:07:00 k8scilium1 falco[716]: {"hostname":"k8scilium1","output":"06:07:00.329538478: Warning 🚀 Container spawned! container=testpodagin image=docker.io/library/nginx:latest use>
lines 1-21/21 (END)
There are reference to use Falco Sidekick in this case. Without too much surprise, it points to the falco.yaml file, specifically the output part.
Remember, we saw in a previous article that we can configure Falco to output its data to an http endpoint. We saw in the previous section that Falco Sidekick provide an http endpoint. So we have to configure the falco.yaml with the proper output.
Additionaly, the json_output should be configured. The parameters to be modified are nicely summarized in the documentation and cpy pasted below
json_output: true
json_include_output_property: true
http_output:
enabled: true
url: "http://localhost:2801/"
That’s for configuring Falco to stream events to Falco Sidekick, whoch should be installed. With Helm (without Falco), it look like this.
vagrant@k8scilium1:~$ helm repo add falcosecurity https://falcosecurity.github.io/charts
vagrant@k8scilium1:~$ helm repo update
vagrant@k8scilium1:~$ helm install falcosidekick --set config.debug=true falcosecurity/falcosidekick
Once intalled, we have the following object available.
vagrant@k8scilium1:~$ k get deployments.apps
NAME READY UP-TO-DATE AVAILABLE AGE
falcosidekick 2/2 2 2 44d
falcosidekick-ui 1/1 1 1 44d
vagrant@k8scilium1:~$ k get service
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
falcosidekick ClusterIP 100.65.98.171 <none> 2801/TCP,2810/TCP 44d
falcosidekick-ui ClusterIP 100.65.158.52 <none> 2802/TCP 44d
falcosidekick-ui-redis ClusterIP 100.65.3.18 <none> 6379/TCP 44d
kubernetes ClusterIP 100.65.0.1 <none> 443/TCP 83d
vagrant@k8scilium1:~$
At this point we have both falcosidekick service, and falcosidekick-ui service, but both are configured as ClusterIP so it would not be possible to reach any of those directly from the kubernetes node.
In a cloud-managed kubernetes, we could rely on the cloud controller manager and we would get a LoadBalancer service type available from outside the kubernetes overlay. But we cannot do this here, so we’ll rely on an HTTPRoute for the falcosidekick endpoint.
If you started to look at the Gateway API, you probably know that it still relies on a kubernetes service under the hood. Because we’re still not on the cloud, we will need to use NodePort service type. So here is our GatewayClass configuration.
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
name: nodeport-gateway-class
spec:
controllerName: io.cilium/gateway-controller
description: A Cilium GatewayClass for local k8s testing with NodePort svc.
parametersRef:
group: cilium.io
kind: CiliumGatewayClassConfig
name: gateway-class-config
namespace: default
---
apiVersion: cilium.io/v2alpha1
kind: CiliumGatewayClassConfig
metadata:
name: gateway-class-config
namespace: default
spec:
service:
type: NodePort
We should have a new GatewayClass available after that.
We can now move on and create a Gateway for Falcosidekick endpoint, along with an HTTProute.
apiVersion: v1
kind: Namespace
metadata:
name: sharedgw
spec: {}
status: {}
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: falco-gw-tls
namespace: sharedgw
spec:
gatewayClassName: nodeport-gateway-class
listeners:
- protocol: HTTPS
port: 443
name: cilium-gateway
allowedRoutes:
namespaces:
from: All
tls:
certificateRefs:
- kind: Secret
group: ""
name: k8scilium1tls
namespace: sharedtls
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: https-falco
spec:
parentRefs:
- name: falco-gw-tls
namespace: sharedgw
hostnames:
- "k8scilium1"
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: falcosidekick
port: 2801
kind: Service
and again for Falco sidekick UI.
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: falco-ui-gw-tls
namespace: sharedgw
spec:
gatewayClassName: nodeport-gateway-class
listeners:
- protocol: HTTPS
port: 443
name: cilium-gateway
allowedRoutes:
namespaces:
from: All
tls:
certificateRefs:
- kind: Secret
group: ""
name: k8scilium1tls
namespace: sharedtls
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: https-falco-ui
spec:
parentRefs:
- name: falco-ui-gw-tls
namespace: sharedgw
hostnames:
- "k8scilium1"
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: falcosidekick-ui
port: 2802
kind: Service
Notice the use of a ReferenceGrant to use the secret from another namespace.
---
apiVersion: v1
kind: Namespace
metadata:
name: sharedtls
spec: {}
status: {}
---
apiVersion: v1
data:
tls.crt: LS0t========truncated=========LQo=
tls.key: LS0t========truncated=========LQo=
kind: Secret
metadata:
name: k8scilium1tls
namespace: sharedtls
type: kubernetes.io/tls
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
name: allow-ciliumgateway-to-ref-secrets
namespace: sharedtls
spec:
from:
- group: gateway.networking.k8s.io
kind: Gateway
namespace: sharedgw
to:
- group: ""
kind: Secret
So we should have our 2 HTTPRoutes with the corresponding Gateway.
df@df-2404lts:~/Documents/dfrappart.github.io$ k get gatewayclasses.gateway.networking.k8s.io
NAME CONTROLLER ACCEPTED AGE
cilium io.cilium/gateway-controller True 83d
nodeport-gateway-class io.cilium/gateway-controller True 43d
df@df-2404lts:~/Documents/dfrappart.github.io$ k get gateway -n sharedgw
NAME CLASS ADDRESS PROGRAMMED AGE
falco-gw-tls nodeport-gateway-class True 42d
falco-ui-gw-tls nodeport-gateway-class True 42d
df@df-2404lts:~/Documents/dfrappart.github.io$ k get service -n sharedgw
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cilium-gateway-falco-gw-tls NodePort 100.65.165.108 <none> 443:32310/TCP 42d
cilium-gateway-falco-ui-gw-tls NodePort 100.65.165.153 <none> 443:30666/TCP 42d
df@df-2404lts:~/Documents/dfrappart.github.io$ k get httproutes.gateway.networking.k8s.io
NAME HOSTNAMES AGE
https-falco ["k8scilium1"] 42d
https-falco-ui ["k8scilium1"] 42d
Our falco.yaml is configured with the HTTPRoute as its endpoint, and we also a parameter to accept the self signed certifcate used.
vagrant@k8scilium1:~$ cat /etc/falco/falco.yaml |grep "http_output:" -A8
http_output:
# -- Enable sending alerts to an HTTP endpoint or webhook.
enabled: true
# -- URL of the remote server to send the alerts to.
url: "https://k8scilium1:32310"
# -- User agent string to be used in the HTTP request.
user_agent: "falcosecurity/falco"
# -- Tell Falco to not verify the remote server.
insecure: true

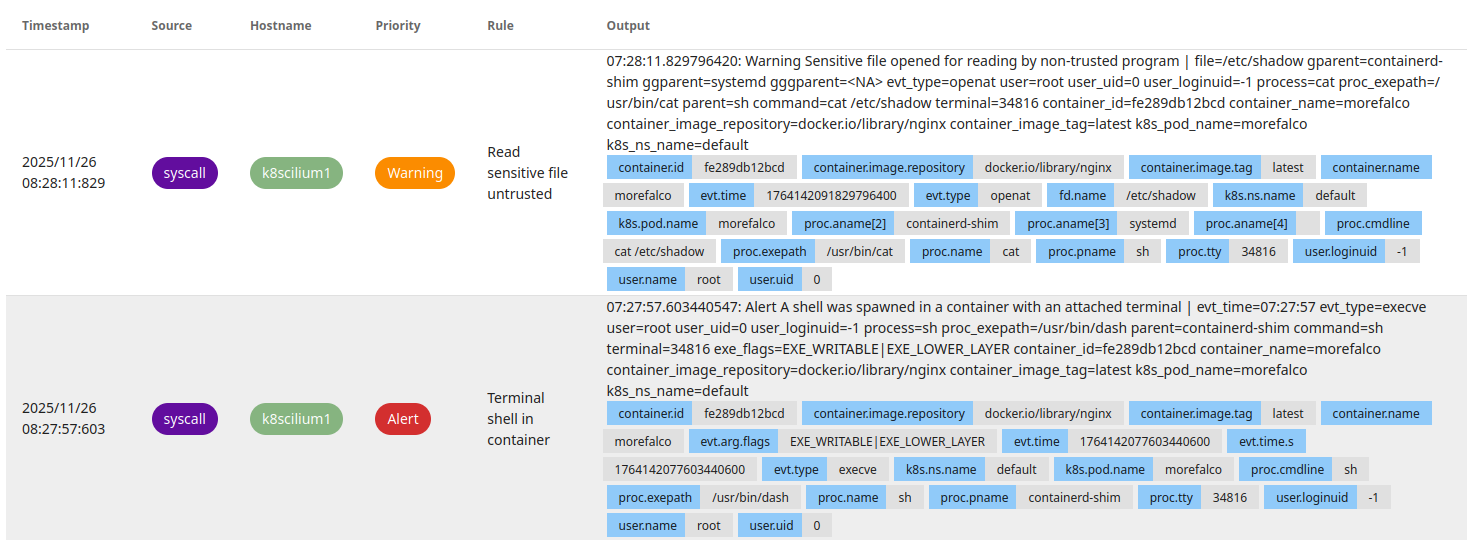

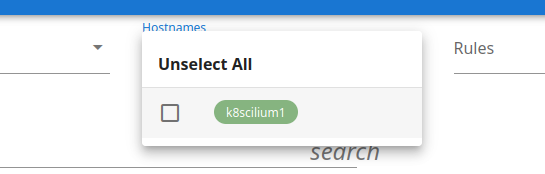

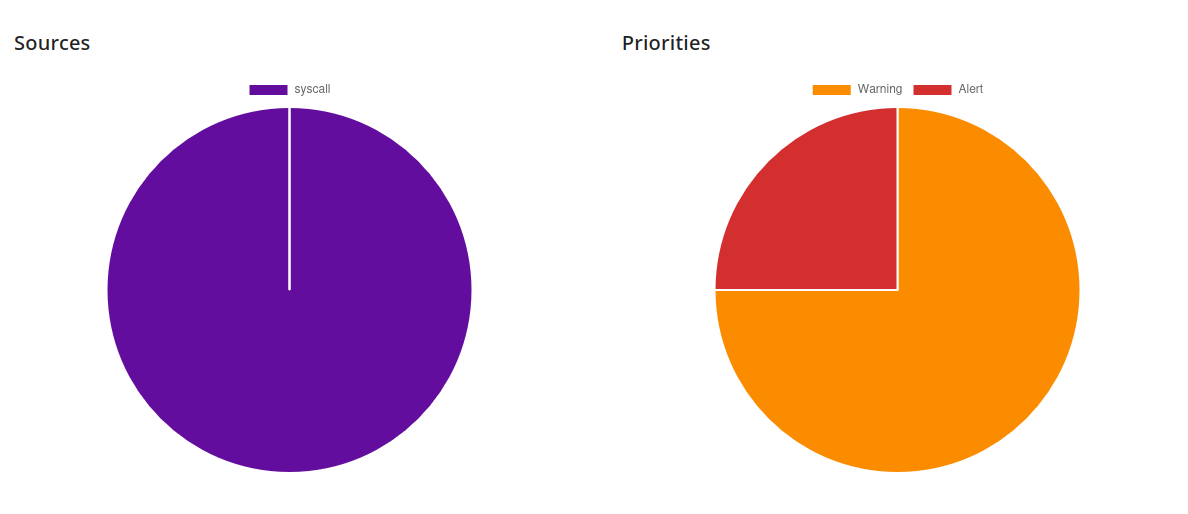

As for the AKS cluster, once we triggered a few rules, we can see the ui updating.
And that’s all for this part.
What’s next?
4. Falcosidekick connectivity
In this section, we will have a look at how we can connect more with/to Falco.
4.1. Using Falcosidekick as a hub for other Falco instances

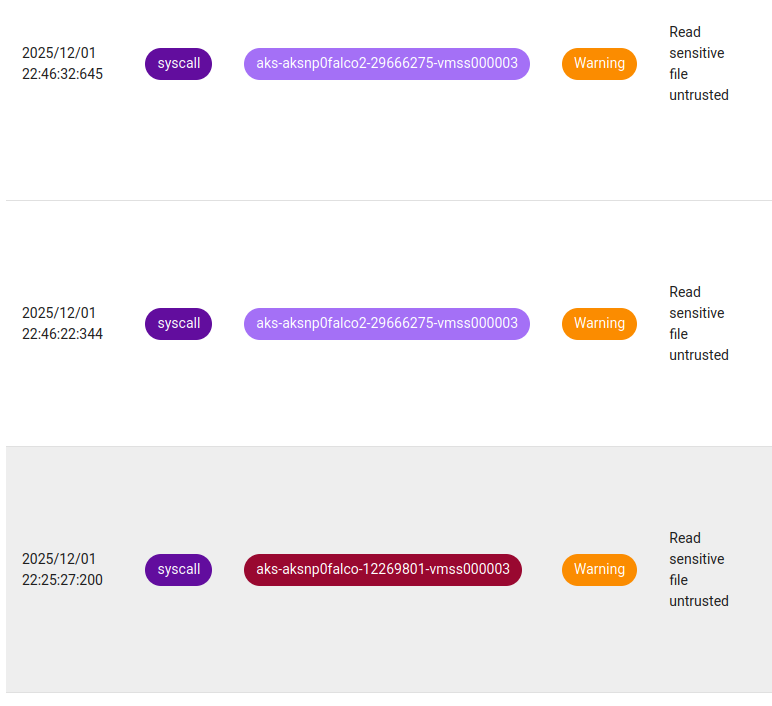

Because Falcosidekick can be configured as a hub for other Falco instances, we want to test this.
So in this section, we’ll use 2 AKS clusters. We’ll install Falco on both clusters but only one with Falcosidekick. Then from our previous experimentations, we’ll configure Falcosidekick so that it can accept incoming traffic from the other AKS cluster.
First, we have our 2 clusters.
df@df-2404lts:~$ az aks list -o table
Name Location ResourceGroup KubernetesVersion CurrentKubernetesVersion ProvisioningState Fqdn
---------- ------------- ---------------- ------------------- -------------------------- ------------------- ----------------------------------------------
aks-falco francecentral rsg-cluster-aks 1.33.5 1.33.5 Creating aksfalco-gyzguww0.hcp.francecentral.azmk8s.io
aks-falco2 francecentral rsg-cluster-aks2 1.33.5 1.33.5 Creating aksfalco2-w38mogb7.hcp.francecentral.azmk8s.io
After getting the credentials from az cli, we should have the following with the kubectl config command.
df@df-2404lts:~$ k config get-contexts
CURRENT NAME CLUSTER AUTHINFO NAMESPACE
* aks-falco aks-falco clusterUser_rsg-cluster-aks_aks-falco
aks-falco2 aks-falco2 clusterUser_rsg-cluster-aks2_aks-falco2
kubernetes-admin@cilium kubernetes kubernetes-admin
df@df-2404lts:~$ k config current-context
aks-falco
We can now install Falcosidekick.
df@df-2404lts:~$ helm upgrade falcosidekick --set config.debug=true falcosecurity/falcosidekick \
--namespace falcosidekick \
--create-namespace \
--set webui.enabled=true \
--install
We get 3 services with this installation, we want to make the falcosidekick available from outside of the cluster.
df@df-2404lts:~$ k get service -n falcosidekick
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
falcosidekick ClusterIP 100.65.188.4 <none> 2801/TCP,2810/TCP 100m
falcosidekick-ui ClusterIP 100.65.124.45 <none> 2802/TCP 99m
falcosidekick-ui-redis ClusterIP 100.65.42.47 <none> 6379/TCP 99m
To prepare for the next step, which is connecting the Falco instance from the other cluster to this instance of Falcosidekick, we need to expose the service falcosidekick-ui. We’ll do this with an HTTPRoute
The configuration being similar to what we did in the self-hosted cluster section, we’ll just show our configuration for the HTTPRoute.
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: falcosidekick-httproute-tls
namespace: falcosidekick
spec:
parentRefs:
- name: shared-gw-tls
namespace: sharedgw
hostnames:
- "falcosidekick.app.teknews.cloud"
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: falcosidekick
port: 2801

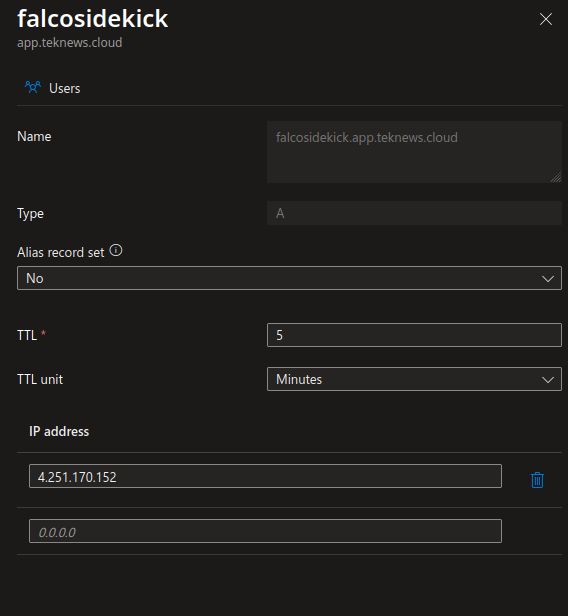

Notice the hostnames section. We created a record on an Azure DNS zone that point to the IP of our Gateway.
df@df-2404lts:~/Documents/dfrappart.github.io$ k get httproute -n falcosidekick
NAME HOSTNAMES AGE
falcosidekick-httproute-tls ["falcosidekick.app.teknews.cloud"] 60m
If the HTTPRoute is in an accepted state, checking access to falcosidekick with curl should gives us something like this.
df@df-2404lts:~/Documents/dfrappart.github.io$ curl -k -i -X GET https://falcosidekick.app.teknews.cloud/healthz
HTTP/1.1 200 OK
content-type: application/json
date: Mon, 01 Dec 2025 22:01:52 GMT
content-length: 16
x-envoy-upstream-service-time: 1
server: envoy
{"status": "ok"}
Ok let’s install Falco on this cluster, the one with the Falcosidekick instance. Because this is sthe same cluster, we can here rely on the ClusterIP Ip address.
df@df-2404lts:~$ k get service -n falcosidekick falcosidekick
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
falcosidekick ClusterIP 100.65.188.4 <none> 2801/TCP,2810/TCP 100m
We can install Falco with the following configuration.
helm upgrade falco falcosecurity/falco \
--create-namespace \
--namespace falco \
--set falco.http_output.enabled=true \
--set falco.http_output.url="http://100.65.188.4:2801" \
--set falco.http_output.insecure=true \
--set falco.json_output=true \
--set json_include_output_property=true \
--install
Switching on the other cluster, we use the nearly same configuration, we just switch the internal ClusterIP address to the HTTPRoute.
Because in this case the certiuficate is a self-signed one, we also need to specify the falco.http_output.insecure=true parameter.
helm upgrade falco falcosecurity/falco \
--create-namespace \
--namespace falco \
--set falco.http_output.enabled=true \
--set falco.http_output.url="https://falcosidekick.app.teknews.cloud" \
--set falco.http_output.insecure=true \
--set falco.json_output=true \
--set json_include_output_property=true \
--install

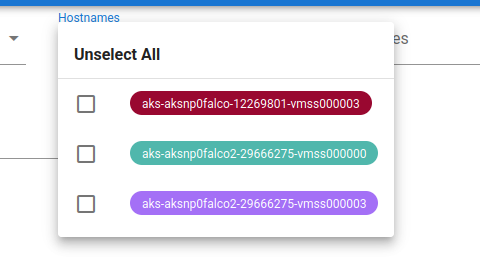

We can now trigger some rules and we should get alerts from both clusters.
Ok, that’s nice. Moving on with connection Falco to an external chat system
4.2. Forwarding Falco event to Teams
In this section we’ll use the previously installed Falcosidekick instance and configure it to forward Falco events to a teams channel.
It can be done with plenty of Chat tools, but it’s convenient for me to try this out with Teams, so here we are.
The workflow is actually pretty simple. We have a few parameters to do both on Falco side, and on the target Teams channel.

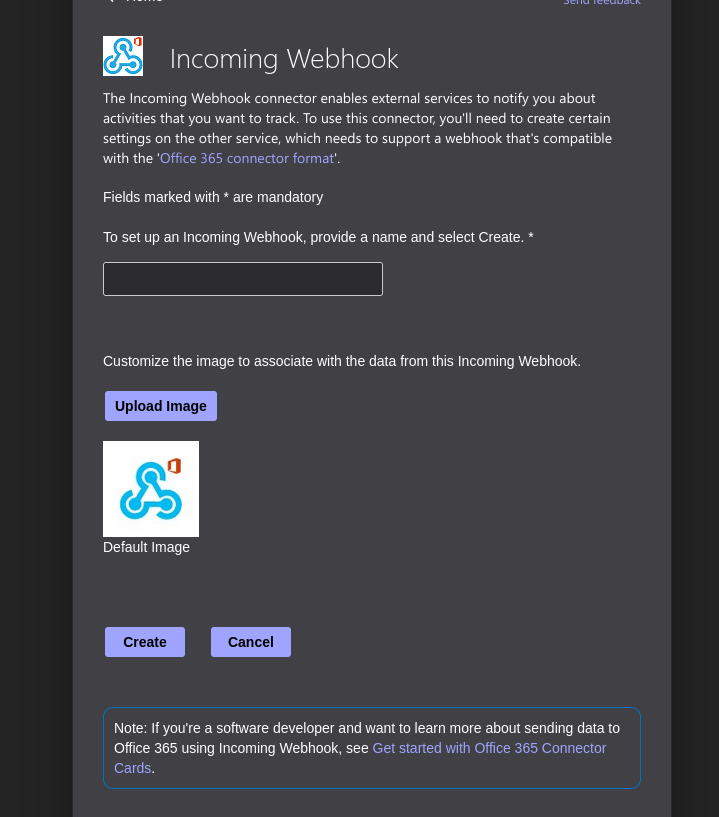

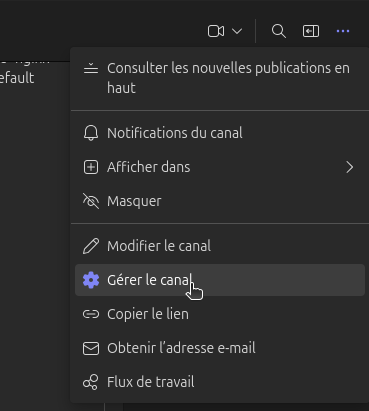

First on the Teams side. Accessing a Teams channel, we need to add an incoming webhook.

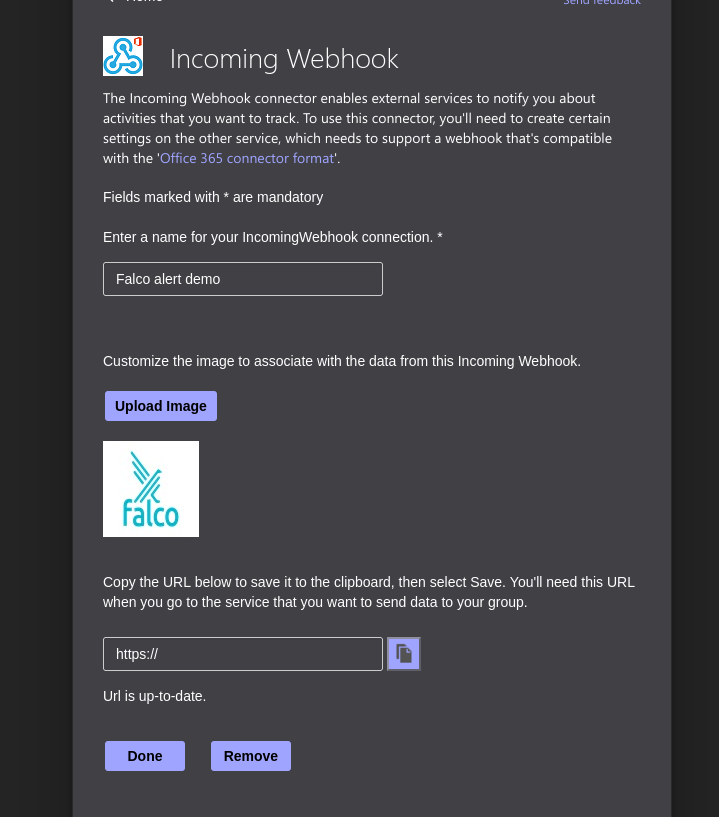

At the end of the configuration, we got the webhook url.
From the Falcosidekick documentation for Teams, we can see that we have the additional parameter to set: teams.webhookurl
We can also find accross
With those informations we can upgrade the Falcosidekick installation.
df@df-2404lts:~$ helm upgrade falcosidekick --set config.debug=true falcosecurity/falcosidekick \
--namespace falcosidekick \
--create-namespace \
--set webui.enabled=true \
--set config.teams.webhookurl="<teams_channel_webhook>" \
--set config.teams.outputformat=all \
--install

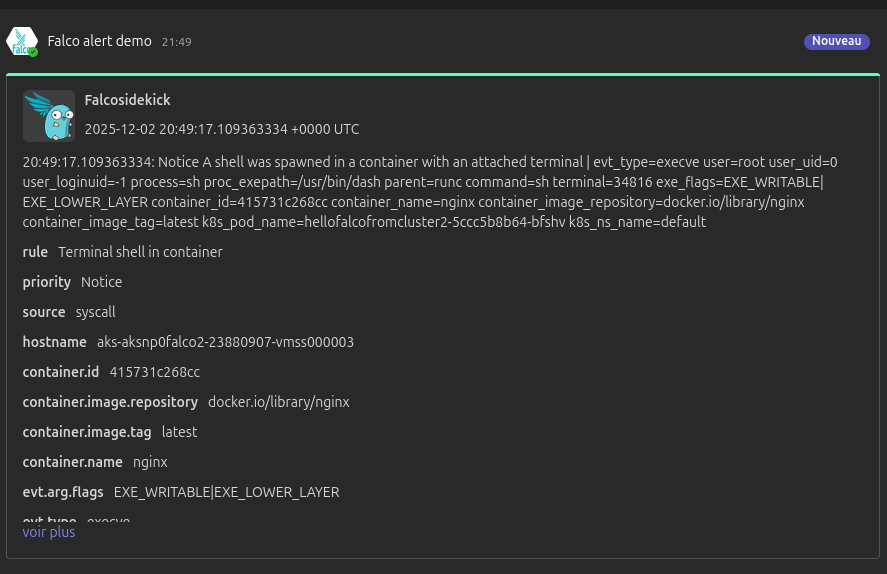

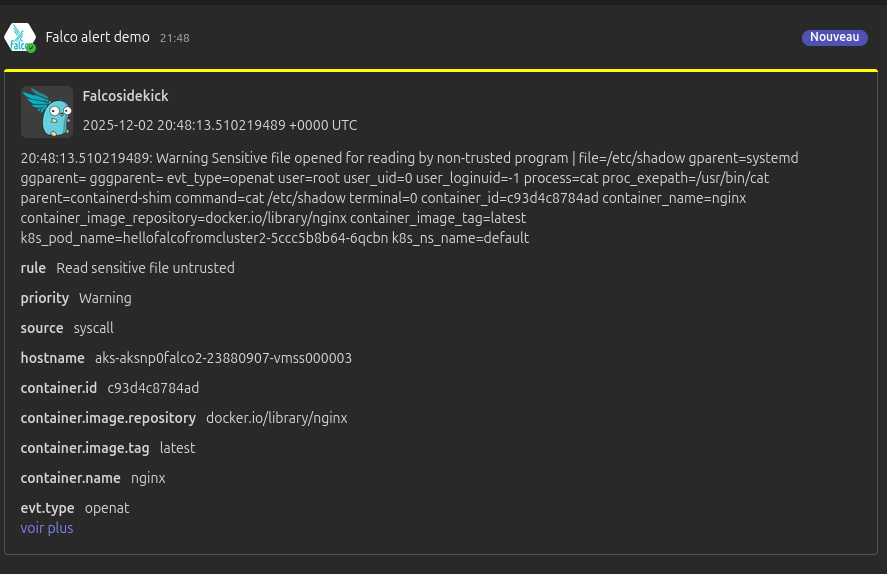

If the channel is configured correctly, messages should pop like this.
And that’s it. A little review before going 😎
5. Summary
This time, we looked how to connect Falco to other systems. We found that we can achieve this with Falcosidekick which act as a proxy between Falco instances (plural intended) and those other systems. The first visualization is brought by Falcosidekick own UI. Apart from that, there are many systems that can connect to Falco. We shaw that the connection to Microsoft Teams is quite simple.
Another steps to extend Falco capabilities would be the plugins, but that will be for another time.
Until then^^
