A look at Envoy as a Gateway API
Hi!
This article aims to be a hands on with Envoy as a Gateway API provider. While it was announced that Nginx as an Ingress Controller will progressively be removed from the pciture, it becomes more an more important to look for alternative. Hence, a look at Gateway API provider.
Our agenda:
- Envoy in the Gateway API providers landscape
- Playing with Envoy Gateway
Ok, let’s go!
1. Envoy in the Gateway API providers landscape
As mentionned, Envoy Gateway is part of the Kubernetes Gateway API implementations.

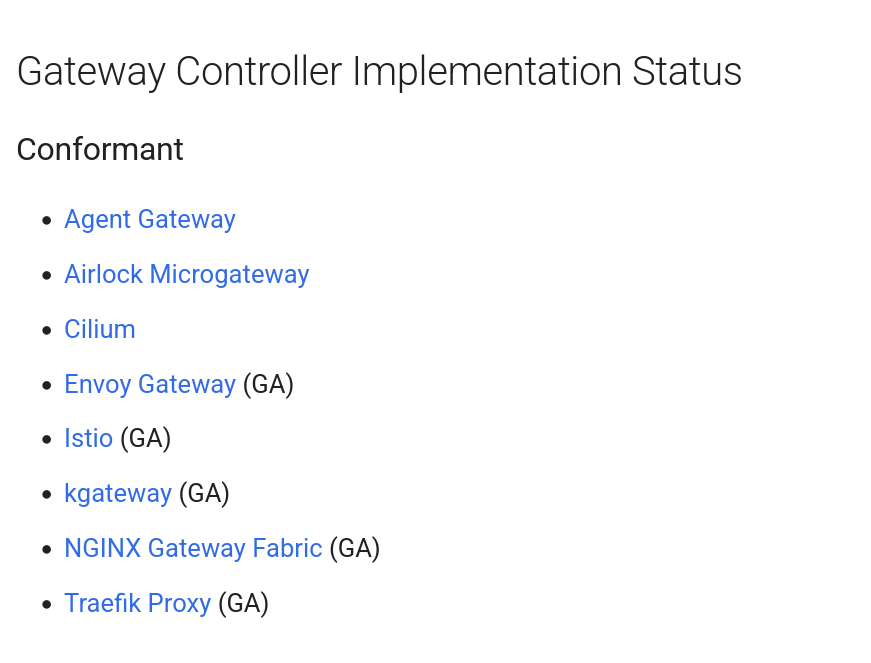

In the current documentation, we can find references to the Conformance levels. There are currently 3 levels:
- Conformant implementations

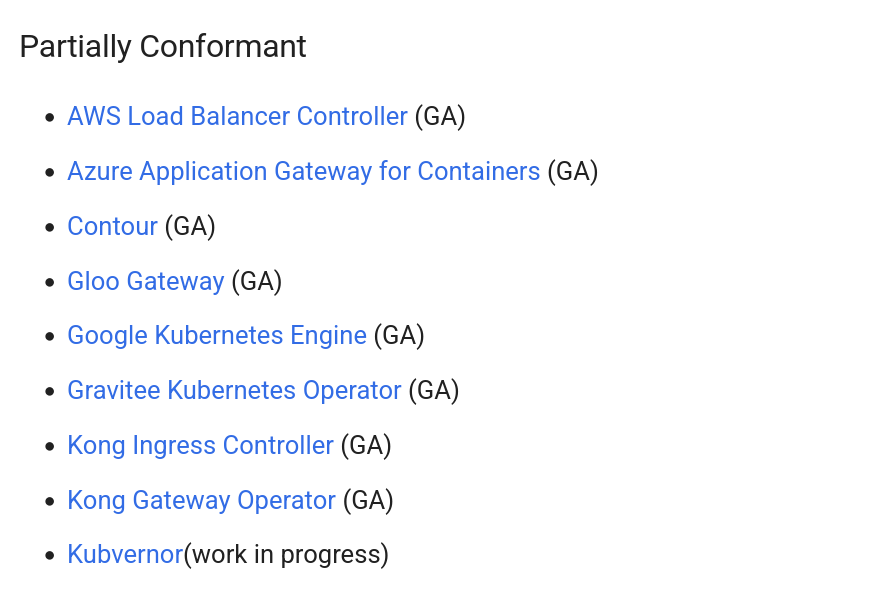

- Partially conformant implementations
- Stale implementations.
The last category, the stale implementations, regroups the implementations that are not following as actively as the others categories the Gateway API evolutions. The partially conformant implementations aim for full conformance. It is required that the providers in this group submitted a conformance report, that passed for one of the 3 most recent Gateway API releases. Last, the conformant category includes the providers that achieve full conformance by submitting passing reports on the core conformance test.
That being said, we’ll note that Envoy is in the conformant implementations (as is Cilium btw).
Another interesting point is that Envoy proxy is the backbone of most of the service mesh implementation that use it as a side-car proxy for the service mesh feature. That is quite representative of the footprint, and stability of the base product.
We can note also that Application Gateway for Container, for AKS users, is only in the partially conformant group.
Envoy is thus an ideal candidate for AKS users looking for a fully confiormant provider.
2. Playing with Envoy Gateway
2.1. Installing Envoy Gateway
Installing Envoy is similar to any installation on Kubernetes. There is an helm chart available to help us perform this task.
However, it seems that there is additional considerations for taking care of the Gateway API prerequisites. You may know (or maybe you read that in another article on this blog 😎) that the Gateway API does requires a list of CRDs to work properly.
Those CRDs are available on a dedicated github to download.
Keep in mind that It’s quite important to be aware of the available version of those CRDs versus the version that is supported by the Gateway provider. Some providers may support more recent versions than others.
That being said, installing the CRDs can be done with kubectl as below.
#!/bin/bash
kubectl apply -f https://raw.githubusercontent.com/kubernetes-sigs/gateway-api/v1.4.1/config/crd/standard/gateway.networking.k8s.io_gatewayclasses.yaml
kubectl apply -f https://raw.githubusercontent.com/kubernetes-sigs/gateway-api/v1.4.1/config/crd/standard/gateway.networking.k8s.io_gateways.yaml
kubectl apply -f https://raw.githubusercontent.com/kubernetes-sigs/gateway-api/v1.4.1/config/crd/standard/gateway.networking.k8s.io_httproutes.yaml
kubectl apply -f https://raw.githubusercontent.com/kubernetes-sigs/gateway-api/v1.4.1/config/crd/standard/gateway.networking.k8s.io_referencegrants.yaml
kubectl apply -f https://raw.githubusercontent.com/kubernetes-sigs/gateway-api/v1.4.1/config/crd/standard/gateway.networking.k8s.io_grpcroutes.yaml
kubectl apply -f https://raw.githubusercontent.com/kubernetes-sigs/gateway-api/v1.4.1/config/crd/experimental/gateway.networking.k8s.io_tlsroutes.yaml
While that works well, taking care of this with an Helm chart would be nice, and that’s also what people at Envoy thought, because we can either install the CRDs at the time of Envoy install, or with a dedicated helm chart.
This chart installs the Kubernetes Gateway API CRDs, and optionnally the Envoy CRDs:
More on those (at least some o fthose) later.
Installing the CRDs is thus done as below.
df@df-2404lts:~$ helm template eg oci://docker.io/envoyproxy/gateway-crds-helm \
--version v1.6.1 \
--set crds.gatewayAPI.enabled=true \
--set crds.gatewayAPI.channel=standard \
--set crds.envoyGateway.enabled=true \
| kubectl apply --server-side -f -
Pulled: docker.io/envoyproxy/gateway-crds-helm:v1.6.1
Digest: sha256:aa1733f6b8bd90ade0dd3d90f2ba4e3bc06e617f4c591f5f55cbb68de4ce6815
customresourcedefinition.apiextensions.k8s.io/backends.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/backendtrafficpolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/clienttrafficpolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/envoyextensionpolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/envoypatchpolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/envoyproxies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/httproutefilters.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/securitypolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/backendtlspolicies.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/gatewayclasses.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/gateways.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/grpcroutes.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/httproutes.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/referencegrants.gateway.networking.k8s.io serverside-applied
Interestingly, we don’t get a default GatewayClass after the installation.
df@df-2404lts:~$ k get gatewayclass
No resources found
Let’s follow with the Envoy Gateway installation.
df@df-2404lts:~$ helm install eg oci://docker.io/envoyproxy/gateway-helm \
--version v1.6.1 \
-n envoy-gateway-system \
--create-namespace \
--skip-crds
Pulled: docker.io/envoyproxy/gateway-helm:v1.6.1
Digest: sha256:6ede7b1df2938132758290dc8e8038d1a8c11b9fda36917c9bc15da2d06bc85a
NAME: eg
LAST DEPLOYED: Mon Jan 26 14:15:02 2026
NAMESPACE: envoy-gateway-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
**************************************************************************
*** PLEASE BE PATIENT: Envoy Gateway may take a few minutes to install ***
**************************************************************************
Envoy Gateway is an open source project for managing Envoy Proxy as a standalone or Kubernetes-based application gateway.
Thank you for installing Envoy Gateway! 🎉
Your release is named: eg. 🎉
Your release is in namespace: envoy-gateway-system. 🎉
To learn more about the release, try:
$ helm status eg -n envoy-gateway-system
$ helm get all eg -n envoy-gateway-system
To have a quickstart of Envoy Gateway, please refer to https://gateway.envoyproxy.io/latest/tasks/quickstart.
To get more details, please visit https://gateway.envoyproxy.io and https://github.com/envoyproxy/gateway.
Now we have a namespace called envoy-gateway-system which contain, among other objects, a deployment. We’ll get back to this later.
df@df-2404lts:~$ k get deployments.apps -n envoy-gateway-system
NAME READY UP-TO-DATE AVAILABLE AGE
envoy-gateway 1/1 1 1 2m12s
Still no GatewayClass though. Let’s review some Gateway API basics
2.2. Basics usage of the Gateway API
Envoy Gateway is a conformant Gateway API implementation.
So it works as expected from such an implementation, with the Gateway API objects that we are becoming familiar with.
The GatewayClass:
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
name: eg
spec:
controllerName: gateway.envoyproxy.io/gatewayclass-controller
The Gateway :
apiVersion: v1
kind: Namespace
metadata:
name: sharedgateway
spec: {}
status: {}
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: envoy-gw
namespace: sharedgateway
spec:
gatewayClassName: eg
listeners:
- protocol: HTTPS
port: 443
name: envoy-gateway
allowedRoutes:
namespaces:
from: All
tls:
certificateRefs:
- kind: Secret
group: ""
name: app1
namespace: certificates
- kind: Secret
group: ""
name: app2
namespace: certificates
Notice the reference to Secrets in the certificates namespace. Before creating the Gateway, we need those Secrets, and before anything the certificates that those refer to.
We can do this with the (very basic) script:
#!/bin/sh
# Generate CA Key
openssl genrsa -out akslab-ca.key 4096
# Generate CA Certificate
openssl req -x509 -new -nodes \
-key akslab-ca.key \
-sha256 \
-days 3650 \
-out akslab-ca.crt \
-subj "/C=Fr/O=Dfitc/CN=akslab-ca"
# Create App1 Private Key
openssl genrsa -out app1.key 4096
# Create App2 Private Key
openssl genrsa -out app2.key 4096
# Generate CSR
openssl req -new \
-key app1.key \
-out app1.csr \
-config app1-openssl.cnf
openssl req -new \
-key app2.key \
-out app2.csr \
-config app2-openssl.cnf
# Sign Certificate with CA
openssl x509 -req \
-in app1.csr \
-CA akslab-ca.crt \
-CAkey akslab-ca.key \
-CAcreateserial \
-out app1.crt \
-days 825 \
-sha256 \
-extensions req_ext \
-extfile app1-openssl.cnf
openssl x509 -req \
-in app2.csr \
-CA akslab-ca.crt \
-CAkey akslab-ca.key \
-CAcreateserial \
-out app2.crt \
-days 825 \
-sha256 \
-extensions req_ext \
-extfile app2-openssl.cnf
We need to create the certificates namespace.
apiVersion: v1
kind: Namespace
metadata:
name: certificates
spec: {}
status: {}
And then, the required secrets.
df@df-2404lts:~$ k create secret tls app1 --key <path_to_app1.key> --cert <path_to_app1.crt> -n certificates
secret/app1 created
df@df-2404lts:~$ k create secret tls app2 --key <path_to_app2.key> --cert <path_to_app12.crt> -n certificates
secret/app2 created
And last, a ReferentGrant
apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
name: allow-envoygateway-to-ref-secrets
namespace: certificates
spec:
from:
- group: gateway.networking.k8s.io
kind: Gateway
namespace: sharedgateway
to:
- group: ""
kind: Secret
To complete the basics test, we create an HTTPRoute, that points to kubernetes services
apiVersion: v1
kind: Namespace
metadata:
name: gundam
spec: {}
status: {}
---
apiVersion: v1
kind: ConfigMap
metadata:
name: index-html-barbatos
namespace: gundam
data:
index.html: |
<html>
<h1>Welcome to Barbatos App 2</h1>
</br>
<h2>This is a demo to illustrate Gateway API </h2>
<img src="https://imgs.search.brave.com/AfLpq5XX4tK6TtxoWLDbd_665qDaxYgPAJKBCxVl5aE/rs:fit:860:0:0:0/g:ce/aHR0cHM6Ly9tLm1l/ZGlhLWFtYXpvbi5j/b20vaW1hZ2VzL0kv/NjFyYkhlLTdCbEwu/anBn" />
</html
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: barbatos
name: barbatos
namespace: gundam
spec:
replicas: 3
selector:
matchLabels:
app: barbatos
template:
metadata:
labels:
app: barbatos
spec:
volumes:
- name: nginx-index-file
configMap:
name: index-html-barbatos
containers:
- image: nginx
name: nginx
volumeMounts:
- name: nginx-index-file
mountPath: /usr/share/nginx/html
resources:
requests:
cpu: "50m"
memory: "50Mi"
limits:
cpu: "200m"
memory: "256Mi"
---
apiVersion: v1
kind: Service
metadata:
namespace: gundam
name: barbatossvc
annotations:
service.cilium.io/global: "true"
service.cilium.io/shared: "true"
spec:
type: ClusterIP
ports:
- port: 8090
targetPort: 80
protocol: TCP
selector:
app: barbatos
---
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: demoapp
name: demoapp
namespace: gundam
spec:
replicas: 3
selector:
matchLabels:
app: demoapp
strategy: {}
template:
metadata:
labels:
app: demoapp
spec:
securityContext: {}
containers:
- image: nginx
name: nginx
resources: {}
status: {}
---
apiVersion: v1
kind: Service
metadata:
labels:
app: demoapp
name: demoappsvc
namespace: gundam
spec:
ports:
- port: 8080
protocol: TCP
targetPort: 80
selector:
app: demoapp
status:
loadBalancer: {}
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: demo-httproute
namespace: gundam
spec:
parentRefs:
- name: envoy-gw
namespace: sharedgateway
hostnames:
- "app1.app.teknews.cloud"
rules:
- backendRefs:
- name: barbatossvc
port: 8090
kind: Service
- backendRefs:
- name: demoappsvc
port: 8080
kind: Service
namespace: gundam
matches:
- path:
type: PathPrefix
value: /demoapp
filters:
- type: URLRewrite
urlRewrite:
path:
type: ReplacePrefixMatch
replacePrefixMatch: /
On a working Kubernetes cluster (the one following is an AKS cluster), we can see the class refers to a specific controller.
df@df-2404lts:~$ k get gatewayclasses.gateway.networking.k8s.io
NAME CONTROLLER ACCEPTED AGE
eg gateway.envoyproxy.io/gatewayclass-controller True 6s
We can also see that we have, in the envoy system namespace, the kubernetes services behind the gateway.
df@df-2404lts:~$ k get svc -n envoy-gateway-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
envoy-gateway ClusterIP 100.65.208.39 <none> 18000/TCP,18001/TCP,18002/TCP,19001/TCP,9443/TCP 99m
envoy-sharedgateway-envoy-gw-a641ae3b LoadBalancer 100.65.128.84 51.11.228.10 443:31334/TCP 42s
df@df-2404lts:~$ k describe service -n envoy-gateway-system envoy-sharedgateway-envoy-gw-a641ae3b
Name: envoy-sharedgateway-envoy-gw-a641ae3b
Namespace: envoy-gateway-system
Labels: app.kubernetes.io/component=proxy
app.kubernetes.io/managed-by=envoy-gateway
app.kubernetes.io/name=envoy
gateway.envoyproxy.io/owning-gateway-name=envoy-gw
gateway.envoyproxy.io/owning-gateway-namespace=sharedgateway
Annotations: <none>
Selector: app.kubernetes.io/component=proxy,app.kubernetes.io/managed-by=envoy-gateway,app.kubernetes.io/name=envoy,gateway.envoyproxy.io/owning-gateway-name=envoy-gw,gateway.envoyproxy.io/owning-gateway-namespace=sharedgateway
Type: LoadBalancer
IP Family Policy: SingleStack
IP Families: IPv4
IP: 100.65.128.84
IPs: 100.65.128.84
LoadBalancer Ingress: 51.11.228.10 (VIP)
Port: https-443 443/TCP
TargetPort: 10443/TCP
NodePort: https-443 31334/TCP
Endpoints: 100.64.0.210:10443
Session Affinity: None
External Traffic Policy: Local
Internal Traffic Policy: Cluster
HealthCheck NodePort: 31898
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal EnsuringLoadBalancer 72s service-controller Ensuring load balancer
Normal EnsuredLoadBalancer 60s service-controller Ensured load balancer
That’s interesting while it’s not the case for all Gateway provider. For example, with a Gateway relying on Cilium, the service is in the same namespace as the Gateway.
df@df-2404lts:~$ k get gatewayclasses.gateway.networking.k8s.io
NAME CONTROLLER ACCEPTED AGE
cilium io.cilium/gateway-controller True 140m
df@df-2404lts:~$ k get gateway -n sharedgateway
NAME CLASS ADDRESS PROGRAMMED AGE
envoy-gw cilium 20.74.35.78 True 13s
df@df-2404lts:~$ k get service -n sharedgateway
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cilium-gateway-envoy-gw LoadBalancer 100.67.190.111 20.74.35.78 443:30791/TCP 26s
IMHO, the Envoy way is better in terms of access control. Let’s move on to some specificities of Envoy
2.3. Customizing the Gateway class
As long as we work in a Cloud environment, we can benefit from the Cloud Controller Manager. And that’s why we ussually can keep the default configuration for a Gateway which will relies on a LoadBalancer Service, as seen in the previous section.
But what if we want to test locally some features? Is it possible to modify the default behavior of the Gateway so that it creates a NodePort service?
For this kind of scenario, we can rely on an Envoy CRD, the EnvoyProxy.
Refering to the documentation, we can find that there is in the spec section a subsection called provider. In this area, we can specify the kind of service as shown below:
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
name: nodeport-proxy
namespace: envoy-gateway-system
spec:
provider:
type: Kubernetes
kubernetes:
envoyService:
type: NodePort
This CRD can then be referenced in the GatewayClass as follow.
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
name: envoy-nodeport
spec:
controllerName: gateway.envoyproxy.io/gatewayclass-controller
parametersRef:
group: gateway.envoyproxy.io
kind: EnvoyProxy
name: nodeport-proxy
namespace: envoy-gateway-system
df@df-2404lts:~$ k $hashi describe gatewayclasses.gateway.networking.k8s.io
Name: cilium
Namespace:
Labels: app.kubernetes.io/managed-by=Helm
Annotations: meta.helm.sh/release-name: cilium
meta.helm.sh/release-namespace: kube-system
API Version: gateway.networking.k8s.io/v1
Kind: GatewayClass
Metadata:
Creation Timestamp: 2025-12-29T16:13:36Z
Generation: 1
Resource Version: 2581
UID: ccfc3a0a-6369-4f7b-ba6e-2ed15139408c
Spec:
Controller Name: io.cilium/gateway-controller
Description: The default Cilium GatewayClass
Status:
Conditions:
Last Transition Time: 2025-12-29T16:14:03Z
Message: Valid GatewayClass
Observed Generation: 1
Reason: Accepted
Status: True
Type: Accepted
Supported Features:
Name: GRPCRoute
Name: Gateway
Name: GatewayAddressEmpty
Name: GatewayHTTPListenerIsolation
Name: GatewayInfrastructurePropagation
Name: GatewayPort8080
Name: GatewayStaticAddresses
Name: HTTPRoute
Name: HTTPRouteBackendProtocolH2C
Name: HTTPRouteBackendProtocolWebSocket
Name: HTTPRouteBackendRequestHeaderModification
Name: HTTPRouteBackendTimeout
Name: HTTPRouteDestinationPortMatching
Name: HTTPRouteHostRewrite
Name: HTTPRouteMethodMatching
Name: HTTPRoutePathRedirect
Name: HTTPRoutePathRewrite
Name: HTTPRoutePortRedirect
Name: HTTPRouteQueryParamMatching
Name: HTTPRouteRequestMirror
Name: HTTPRouteRequestMultipleMirrors
Name: HTTPRouteRequestPercentageMirror
Name: HTTPRouteRequestTimeout
Name: HTTPRouteResponseHeaderModification
Name: HTTPRouteSchemeRedirect
Name: Mesh
Name: MeshClusterIPMatching
Name: MeshHTTPRouteBackendRequestHeaderModification
Name: MeshHTTPRouteQueryParamMatching
Name: MeshHTTPRouteRedirectPath
Name: MeshHTTPRouteRedirectPort
Name: MeshHTTPRouteRewritePath
Name: MeshHTTPRouteSchemeRedirect
Name: ReferenceGrant
Name: TLSRoute
Events: <none>
Name: envoy-nodeport
Namespace:
Labels: <none>
Annotations: <none>
API Version: gateway.networking.k8s.io/v1
Kind: GatewayClass
Metadata:
Creation Timestamp: 2026-01-06T21:46:48Z
Finalizers:
gateway-exists-finalizer.gateway.networking.k8s.io
Generation: 1
Resource Version: 31219
UID: 9f7554b6-9687-4dfe-8644-0eebede95e2c
Spec:
Controller Name: gateway.envoyproxy.io/gatewayclass-controller
Parameters Ref:
Group: gateway.envoyproxy.io
Kind: EnvoyProxy
Name: nodeport-proxy
Namespace: envoy-gateway-system
Status:
Conditions:
Last Transition Time: 2026-01-06T21:47:08Z
Message: Valid GatewayClass
Observed Generation: 1
Reason: Accepted
Status: True
Type: Accepted
Events: <none>
Now, if we create a Gateway that use this GatewayClass, we get its associated service with the kind defined to NodePort, as expected.
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: envoy-nodeport-gw
namespace: envoytest
spec:
gatewayClassName: envoy-nodeport
listeners:
- protocol: HTTPS
port: 443
name: envoy-gateway
allowedRoutes:
namespaces:
from: All
tls:
certificateRefs:
- kind: Secret
group: ""
name: hashikube
namespace: certificates
df@df-2404lts:~$ k get gateway -A $hashi
NAMESPACE NAME CLASS ADDRESS PROGRAMMED AGE
envoytest envoy-nodeport-gw envoy-nodeport 192.168.56.31 True 22d
So that’ that.
If we look further to the EnvoyProxy description, we can find some other interesting parameters in the envoyServe section such as:
| parameters | Description |
|---|---|
annotations |
Annotations that should be appended to the service. </br>By default, no annotations are appended. |
name |
Name of the service. |
| When unset, this defaults to an autogenerated name. |
Those seems promising.
The name argument allows us to manage the underlying kubernetes service name, which may be useful.
The annotations argument should allow us to pass desired annotations to the service.
It’s interesting because it moves back to the GatewayClass some specificities that we may want on all our Gateways using a specific class. In the case of multiple Gateway, the service name should be unique for each Gateway, and since it is created in the envoy-gateway-system namespace, one should be careful with it.
However, the annotations parameter is interesting and can allow us to avoid using the spec.infrastructure.annotations parameter on the Gateway.
Let’s try this.
First an EnvoyProxy CRD.
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
name: azure-internal-envoygateway
namespace: envoy-gateway-system
spec:
provider:
type: Kubernetes
kubernetes:
envoyService:
annotations:
service.beta.kubernetes.io/azure-load-balancer-internal: "true"
name: azure-internal-envoygateway
Next, a new GatewayClass referencing this CRD.
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
name: azure-internal-envoygatewayclass
spec:
controllerName: gateway.envoyproxy.io/gatewayclass-controller
parametersRef:
group: gateway.envoyproxy.io
kind: EnvoyProxy
name: azure-internal-envoygateway
namespace: envoy-gateway-system
And now a new Gateway referencing this GatewayClass
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: envoy-gw-internal
namespace: sharedgateway
spec:
gatewayClassName: azure-internal-envoygatewayclass
listeners:
- protocol: HTTPS
port: 443
name: envoy-gateway
allowedRoutes:
namespaces:
from: All
tls:
certificateRefs:
- kind: Secret
group: ""
name: app1
namespace: certificates
- kind: Secret
group: ""
name: app2
namespace: certificates
- protocol: HTTP
port: 80
name: envoy-gateway-http
allowedRoutes:
namespaces:
from: All
We can check the Gateway after some time.
df@df-2404lts:~$ k get -n sharedgateway gateway envoy-gw-internal
NAME CLASS ADDRESS PROGRAMMED AGE
envoy-gw-internal azure-internal-envoygatewayclass 172.16.0.7 True 25m
And it’s associated service.
df@df-2404lts:~$ k get service -n envoy-gateway-system azure-internal-envoygateway -o custom-columns=Name:.metadata.name,namespace:.metadata.namespace,Type:.spec.type,IP:.status.loadBalancer.ingress[0].ip,Annotations:.metadata.annotations
Name namespace Type IP Annotations
azure-internal-envoygateway envoy-gateway-system LoadBalancer 172.16.0.7 map[service.beta.kubernetes.io/azure-load-balancer-internal:true]
On Azure we can find the Internal LoadBalancer.

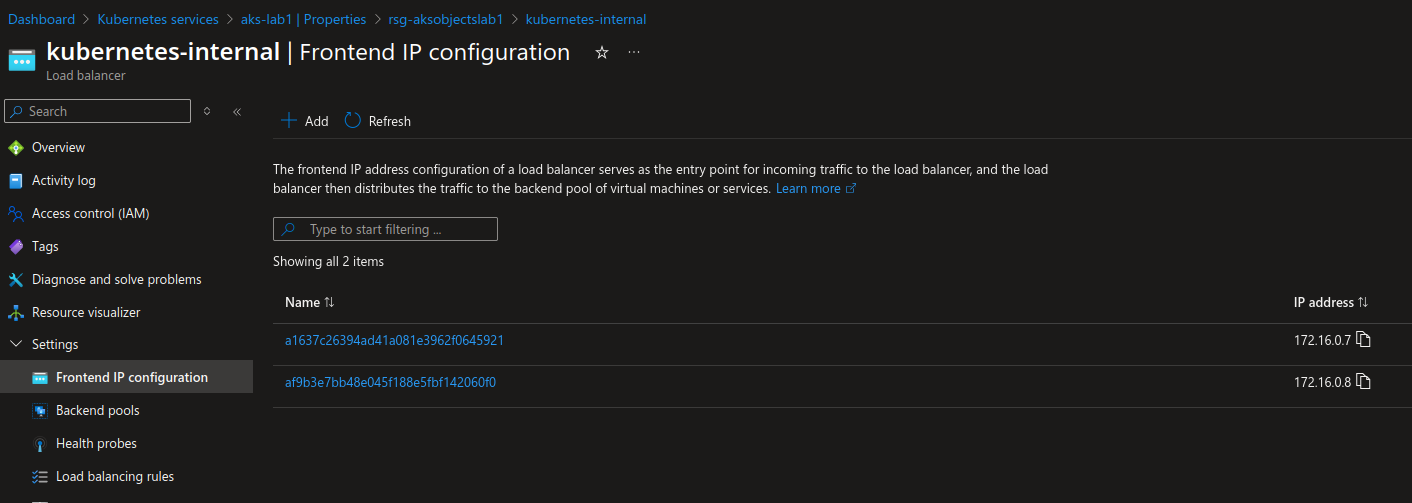

NBotice the second front end ip, that’s because, just as a reminder, I created another Internal Gateway, without using the GatewayClass taht we just defined.
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: envoy-gw-internal-auto
namespace: sharedgateway
spec:
gatewayClassName: eg
infrastructure:
annotations:
"service.beta.kubernetes.io/azure-load-balancer-internal": "true"
listeners:
- allowedRoutes:
namespaces:
from: Same
name: envoy-gw-internal-auto
port: 80
protocol: HTTP
Checking the Gateway, and the service we get the following.
df@df-2404lts:~$ k get gateway -n sharedgateway envoy-gw-internal-auto -o custom-columns=Name:.metadata.name,Namespace:.metadata.namespace,IP:.status.addresses[0].value,InfrastructureAnnotations:.spec.infrastructure.annotations
Name Namespace IP InfrastructureAnnotations
envoy-gw-internal-auto sharedgateway 172.16.0.8 map[service.beta.kubernetes.io/azure-load-balancer-internal:true]
df@df-2404lts:~$ k get service -n envoy-gateway-system -o custom-columns=Name:.metadata.name,namespace:.metadata.namespace,Type:.spec.type,IP:.status.loadBalancer.ingress[0].ip,Annotations:.metadata.annotations
Name namespace Type IP Annotations
azure-internal-envoygateway envoy-gateway-system LoadBalancer 172.16.0.7 map[service.beta.kubernetes.io/azure-load-balancer-internal:true]
envoy-gateway envoy-gateway-system ClusterIP <none> map[meta.helm.sh/release-name:eg meta.helm.sh/release-namespace:envoy-gateway-system]
envoy-sharedgateway-envoy-gw-a641ae3b envoy-gateway-system LoadBalancer 51.11.236.233 <none>
envoy-sharedgateway-envoy-gw-internal-auto-d296d3c7 envoy-gateway-system LoadBalancer 172.16.0.8 map[service.beta.kubernetes.io/azure-load-balancer-internal:true]
Same result in the end, but not the same level of access. An interesting point to keep in mind in the Gateway API governance.
And there are still more interesting features available.
2.4. Adding authentication in front of apps
We saw that there are specific CRDs coming with EnvoyProxy. One of those is the SecurityPolicy.
From the documentation, we can find references to configure OIDC authentication.
Where it becomes interestingis that Entra Id can be used as an OIDC IDentity provider. So let’s try this.
First we need to define an HTTPRoute using a public Gateway. We’ll rely on the objects define in the 2.1 section.
Then we’ll define a SecurityPolicy. It will look like this.
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: SecurityPolicy
metadata:
name: oidc-envoy-app1-security-policy
namespace: gundam
spec:
targetRefs:
- group: gateway.networking.k8s.io
kind: HTTPRoute
name: demo-httproute
oidc:
provider:
issuer: "https://login.microsoftonline.com/00000000-0000-0000-0000-000000000000/v2.0"
clientID: "00000000-0000-0000-0000-000000000000"
clientSecret:
name: "envoy-app-client-secret"
redirectURL: "https://app1.app.teknews.cloud/oauth2/callback"
logoutPath: "/logout"
Note that it refers to an Opaque Secret which is define like this.
---
apiVersion: v1
data:
client-secret: <Secret_Value>
kind: Secret
metadata:
creationTimestamp: null
name: envoy-app-client-secret
namespace: gundam

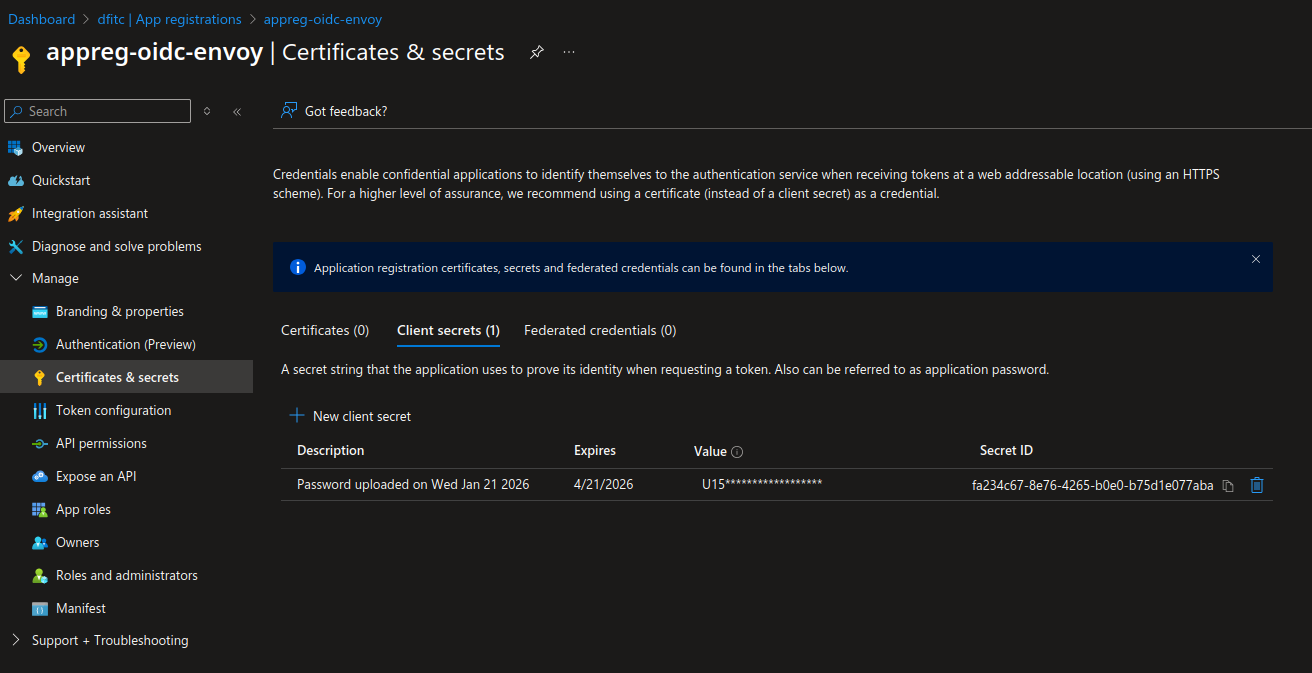

The secret value refers to the secret define on the Entra Id Application registration that we define for OIDC Auth with Entra Id.

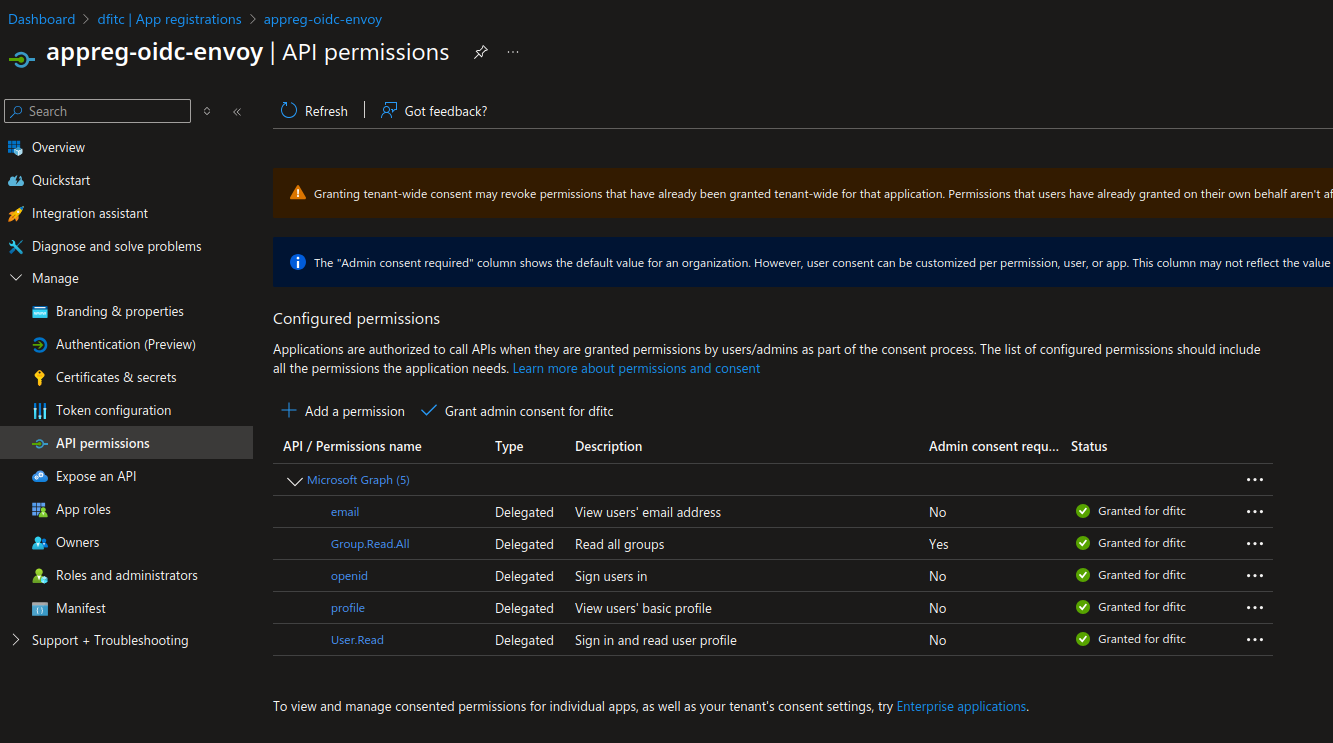

We need also to define some authorization on the Graph API, so that the app registration can read some informations on Entra Id.

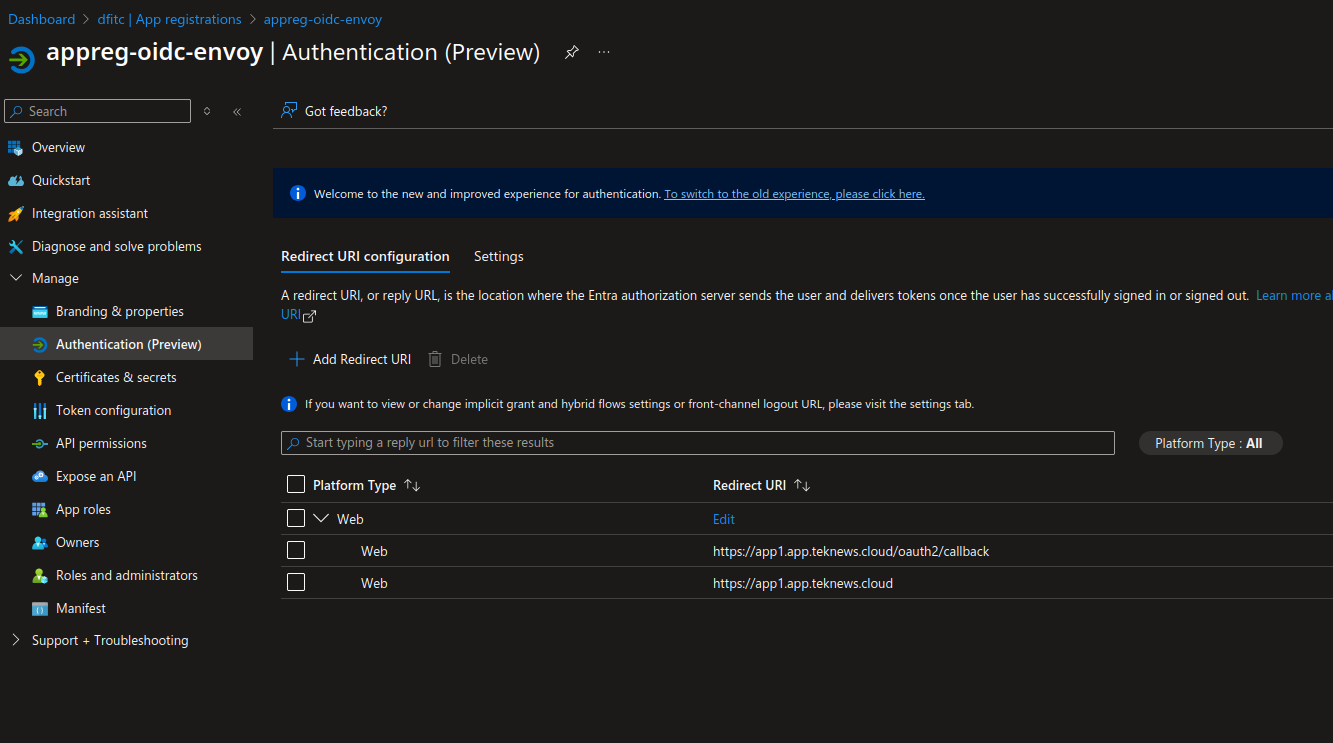

And last we need to define some urls.

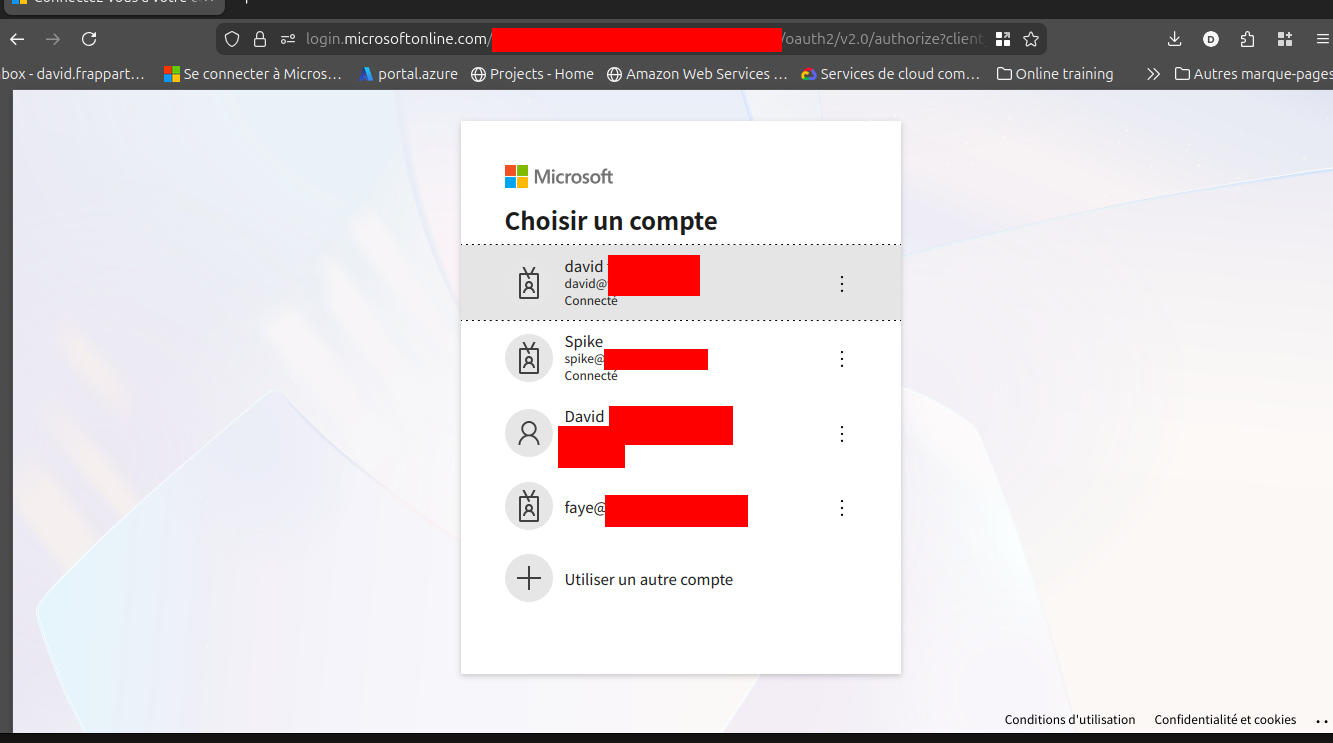

If everything works correctly, we should get an authentication mire before accessing the demo app.
df@df-2404lts:~$ curl -k -i -X GET https://app1.app.teknews.cloud
HTTP/2 302
set-cookie: OauthNonce-97a9498a=f0dec3de0a392bae.gCNoymoqJvP2NUQjWm+zqQV3TLG+UTP+rVwC/fAzyp8=;path=/;Max-Age=600;secure;HttpOnly
set-cookie: CodeVerifier=t039-RkcWijBpDobHuMsVKc1ShDGm8BAQdZEIUn5ZuLbpvVfptaFWKn75xCvNJTExQ_btF3YIkWiNSM2AKnaDA;path=/;Max-Age=600;secure;HttpOnly
location: https://login.microsoftonline.com/00000000-0000-0000-0000-000000000000/oauth2/v2.0/authorize?client_id=00000000-0000-0000-0000-000000000000&code_challenge=Xz1VjTI7vFg642-boa3szOp854pxo3L3AnUmd7OT_Fc&code_challenge_method=S256&redirect_uri=https%3A%2F%2Fapp1.app.teknews.cloud%2Foauth2%2Fcallback&response_type=code&scope=openid&state=eyJ1cmwiOiJodHRwczovL2FwcDEuYXBwLnRla25ld3MuY2xvdWQvIiwiY3NyZl90b2tlbiI6ImYwZGVjM2RlMGEzOTJiYWUuZ0NOb3ltb3FKdlAyTlVRaldtK3pxUVYzVExHK1VUUCtyVndDL2ZBenlwOD0ifQ
date: Thu, 29 Jan 2026 15:33:48 GMT

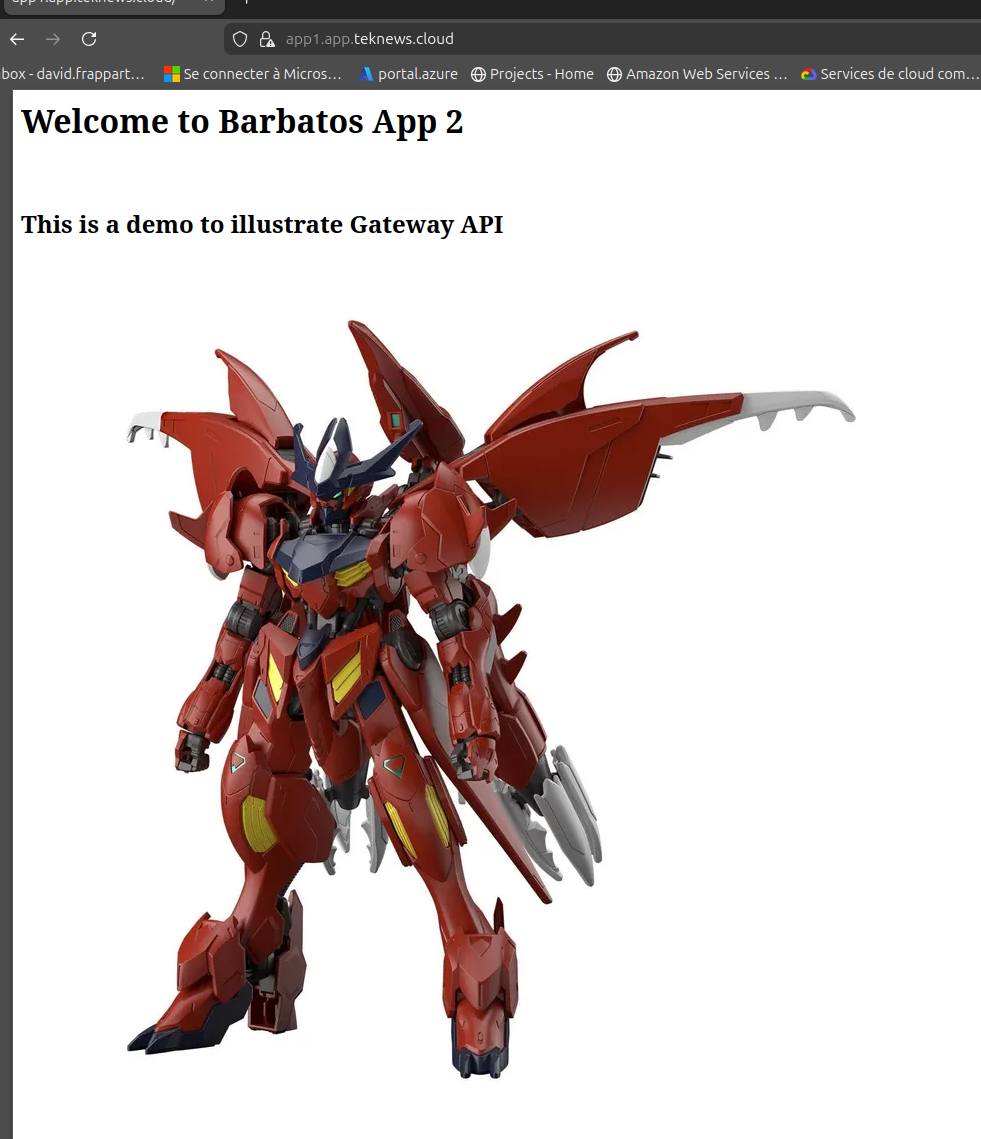

Ok, that’s fun, What elso do we have?
2.5 Managing traffic with Rate limiting
Still found in the documentation, we can find different Traffic management scenarios, such as managing the rate limit.
From this, we can deduce that for an HTTPRoute define as below.
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: demo-httproute
namespace: gundam
spec:
hostnames:
- hashikube1
parentRefs:
- group: gateway.networking.k8s.io
kind: Gateway
name: envoy-nodeport-gw
namespace: envoytest
rules:
- backendRefs:
- group: ""
kind: Service
name: barbatossvc
port: 8090
weight: 1
matches:
- path:
type: PathPrefix
value: /
- backendRefs:
- group: ""
kind: Service
name: demoappsvc
namespace: gundam
port: 8080
weight: 1
filters:
- type: URLRewrite
urlRewrite:
path:
replacePrefixMatch: /
type: ReplacePrefixMatch
matches:
- path:
type: PathPrefix
value: /demoapp
We can define the BackendTrafficPolicy to limit globally the traffic on the HTTPRoute.
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: BackendTrafficPolicy
metadata:
name: policy-httproute
namespace: gundam
spec:
targetRefs:
- group: gateway.networking.k8s.io
kind: HTTPRoute
name: demo-httproute
rateLimit:
global:
rules:
- limit:
requests: 3
unit: Hour
Let’s try this.
df@df-2404lts:~$ for i in {1..6}; do curl -i -X GET https://hashikube1:32650 ; sleep 1; done
HTTP/2 500
date: Thu, 29 Jan 2026 15:49:59 GMT
HTTP/2 500
date: Thu, 29 Jan 2026 15:50:00 GMT
HTTP/2 500
date: Thu, 29 Jan 2026 15:50:01 GMT
HTTP/2 500
date: Thu, 29 Jan 2026 15:50:02 GMT
HTTP/2 500
date: Thu, 29 Jan 2026 15:50:03 GMT
HTTP/2 500
date: Thu, 29 Jan 2026 15:50:04 GMT
We specified a limit of 3 requyest per hour. After the 3rd attempt, we get HTTP/2 500, which is what we expected.
We’re nearly done for this first contact.
2.6. Envoy Admin portal
If you were paying attention (😜), you noticed the existence of an envoy deployument in the envoy-gateway-system namespace.
df@df-2404lts:~$ k get deployments.apps -n envoy-gateway-system $hashi
NAME READY UP-TO-DATE AVAILABLE AGE
envoy-envoytest-envoy-nodeport-gw-fff40353 1/1 1 1 22d
envoy-gateway 1/1 1 1 30d
df@df-2404lts:~$ k $hashi get pod -n envoy-gateway-system envoy-gateway-64d8866b44-gt9b9 -o custom-columns=Name:.metadata.name,Namespace:.metadata.n
amespace,Image:.spec.containers[0].image
Name Namespace Image
envoy-gateway-64d8866b44-gt9b9 envoy-gateway-system docker.io/envoyproxy/gateway:v1.6.1
The documentation mentions an admin console available by default on theport 19000. However, checking the services, we cannot find this port.
df@df-2404lts:~$ k get service envoy-gateway -n envoy-gateway-system $hashi
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
envoy-gateway ClusterIP 100.65.80.43 <none> 18000/TCP,18001/TCP,18002/TCP,19001/TCP,9443/TCP 31d
But that’s ok, because this is actually the pod that has the port 19000 available. It’s just that it’s not exposed thourhg a service by default. So to access it, we need to use a port-forward command.
df@df-2404lts:~/Documents/myrepo/AKSPerso/yamlconfig/gatewayapi/envoy$ k port-forward -n envoy-gateway-system deployments/envoy-gateway 19000:19000
Forwarding from 127.0.0.1:19000 -> 19000
Forwarding from [::1]:19000 -> 19000

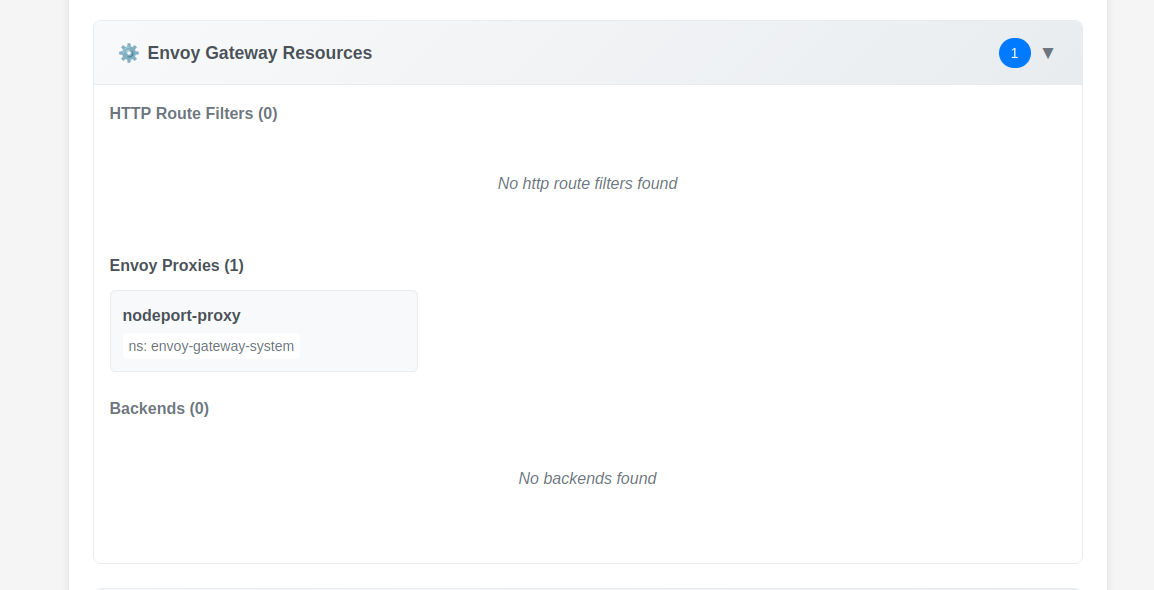

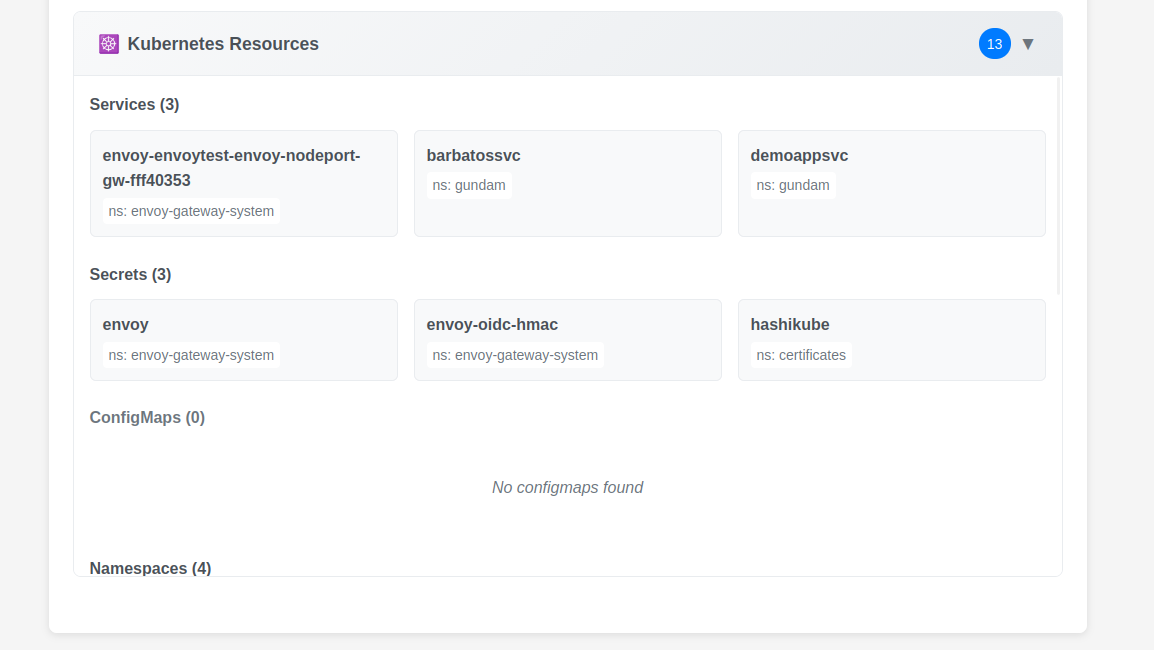

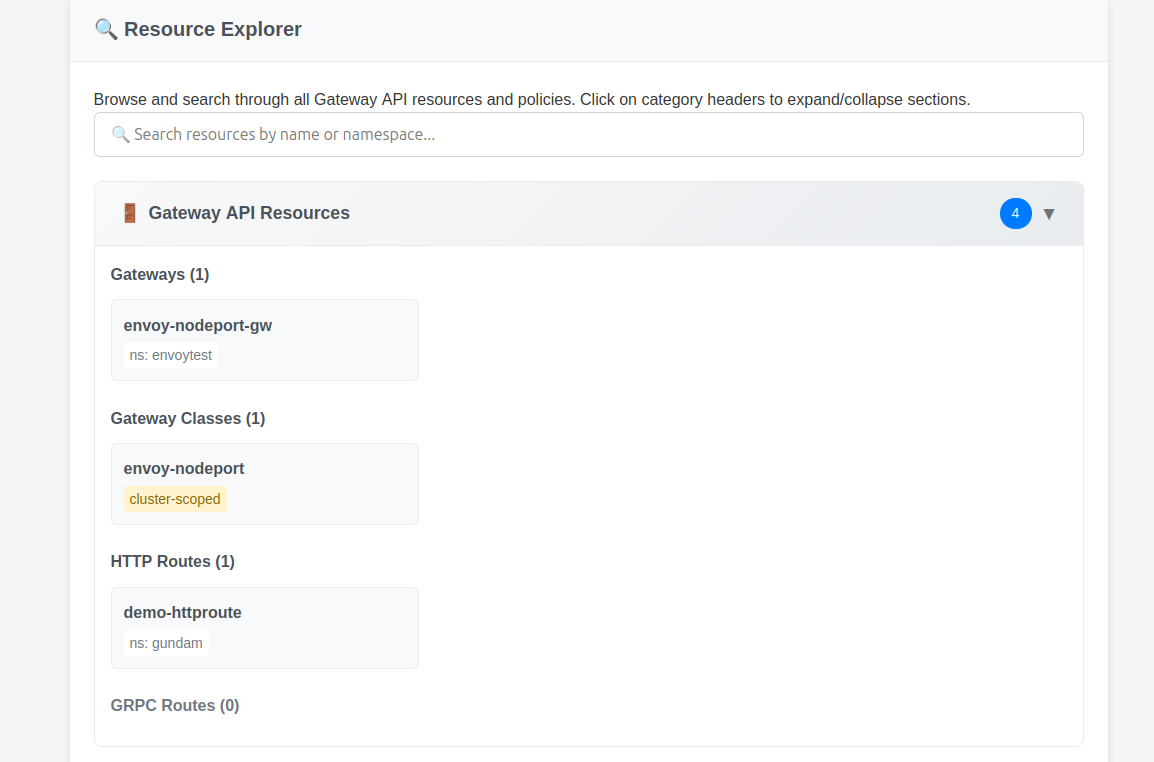

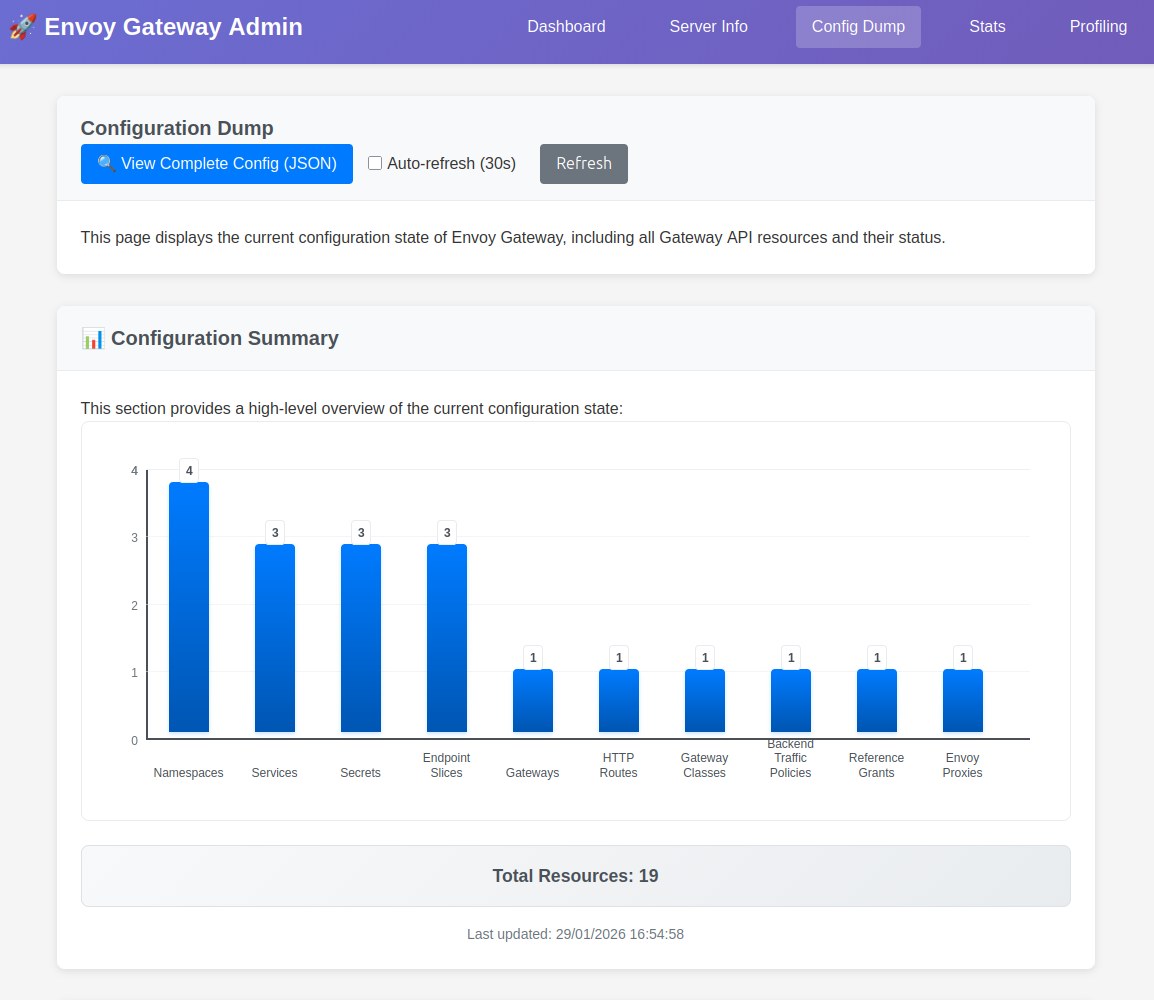

We can then access the portal on the corresponding port, and find some uyseful informations.
Additional samples are acvailable on this page.
Well, that will be all for now.
3. Wrapping up
Going back to Gateway API, we looked at Envoy Gateway this time.
What we note:
- A mature provider, available without CNI constraint (which is an important point for a Cloud managed Kubernetes)
- Interesting CRDs to complete the Main stream Gateway API features
- An admin portal available by default that may be used for troubelshooting purposes.
What we should do after this:
Plug everything in a monitoring system such as prometheus grafana to get a better view on the metrics.
What we can note :
Envoy CRDs provide a workaround for some lack (in my opinnion), which may question if the original purpose of the Gateway API initiative (to avoid providers CRDs and standardize configuration) is still a thing 🤔
Apart from that, a very serious candidate to migrate from Ingress Controller.
See you soon ^^
